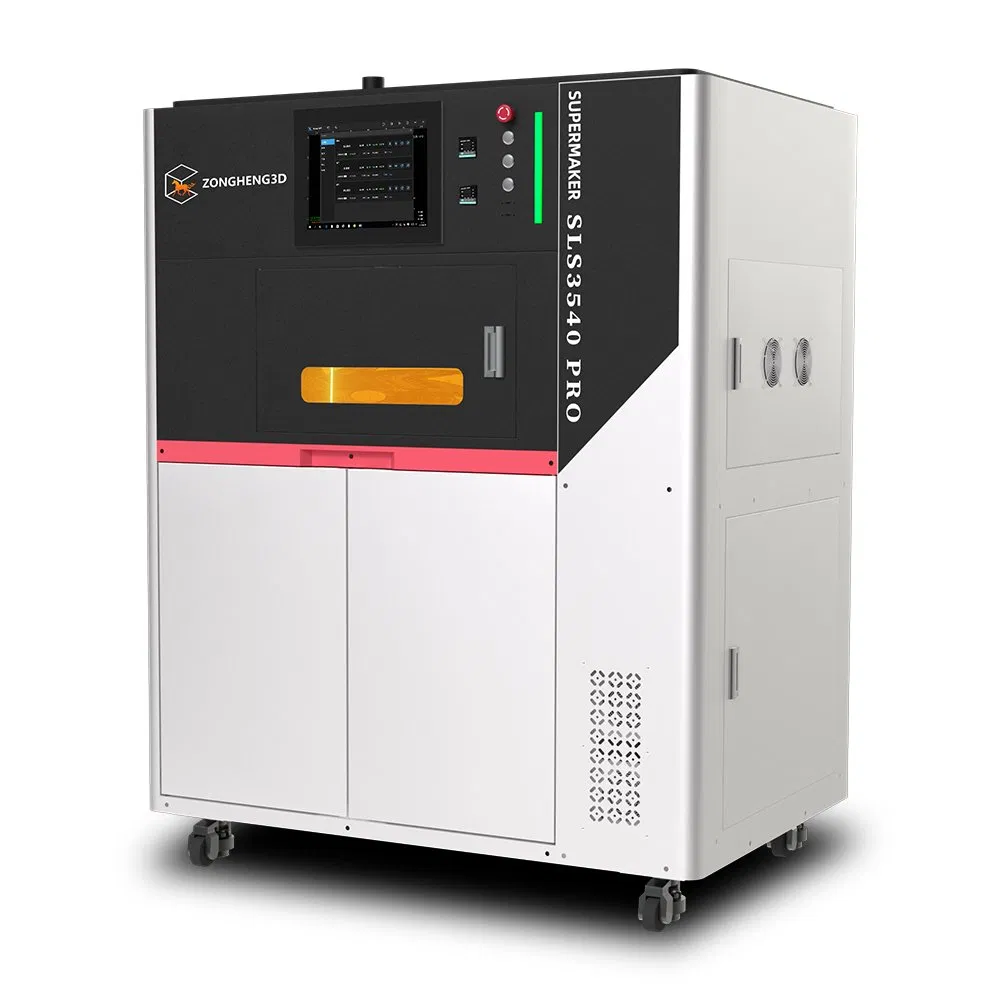

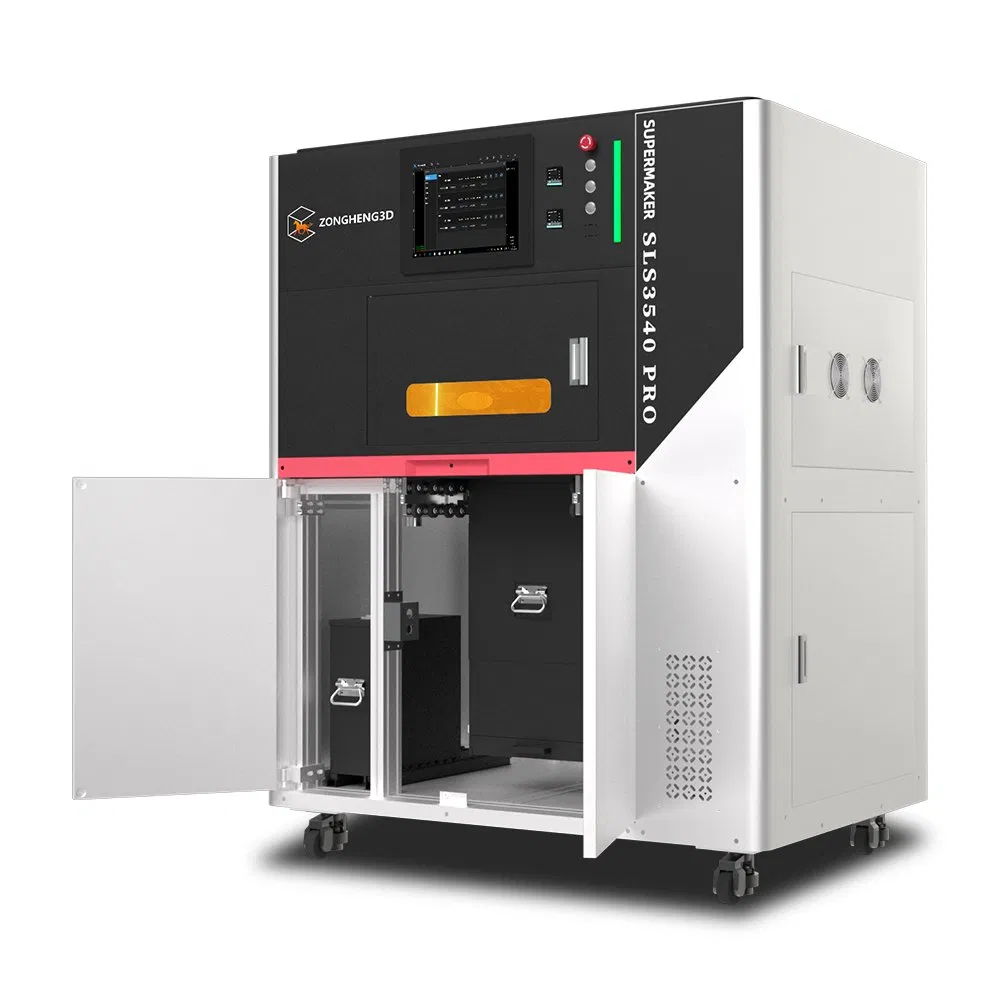

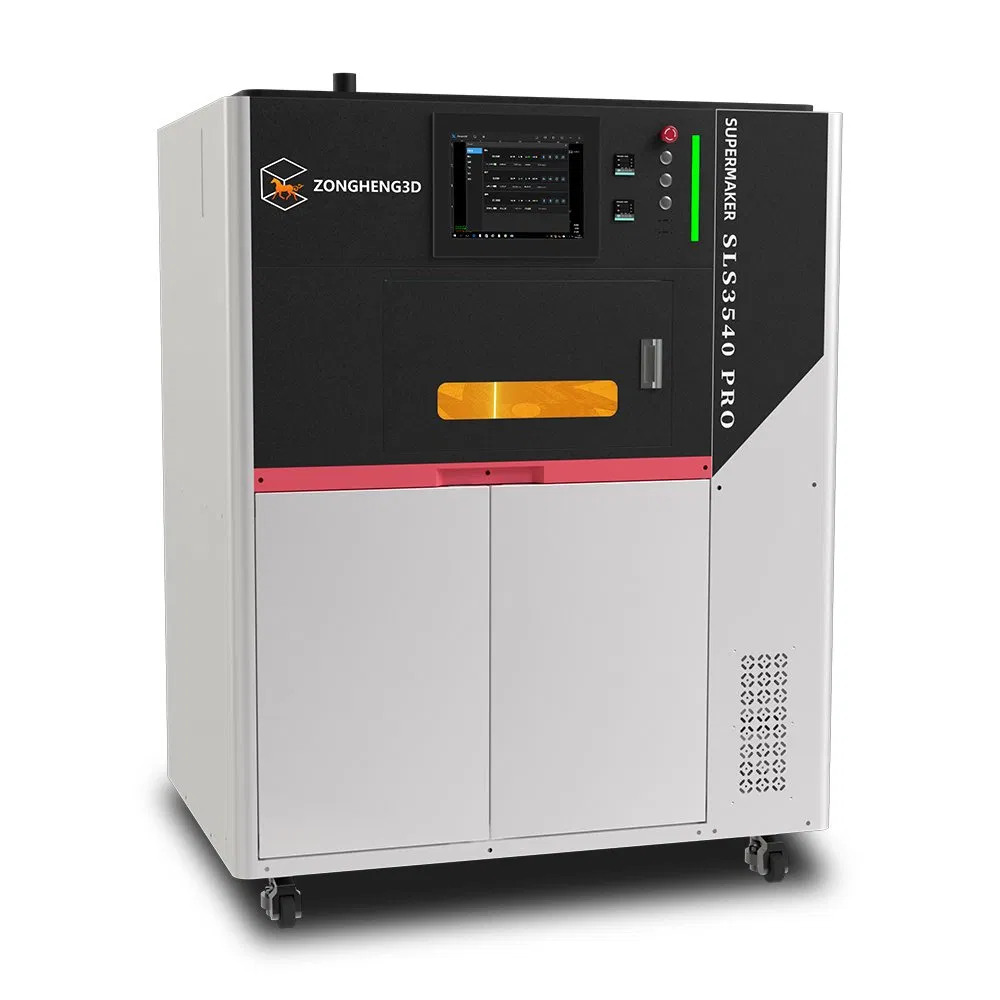

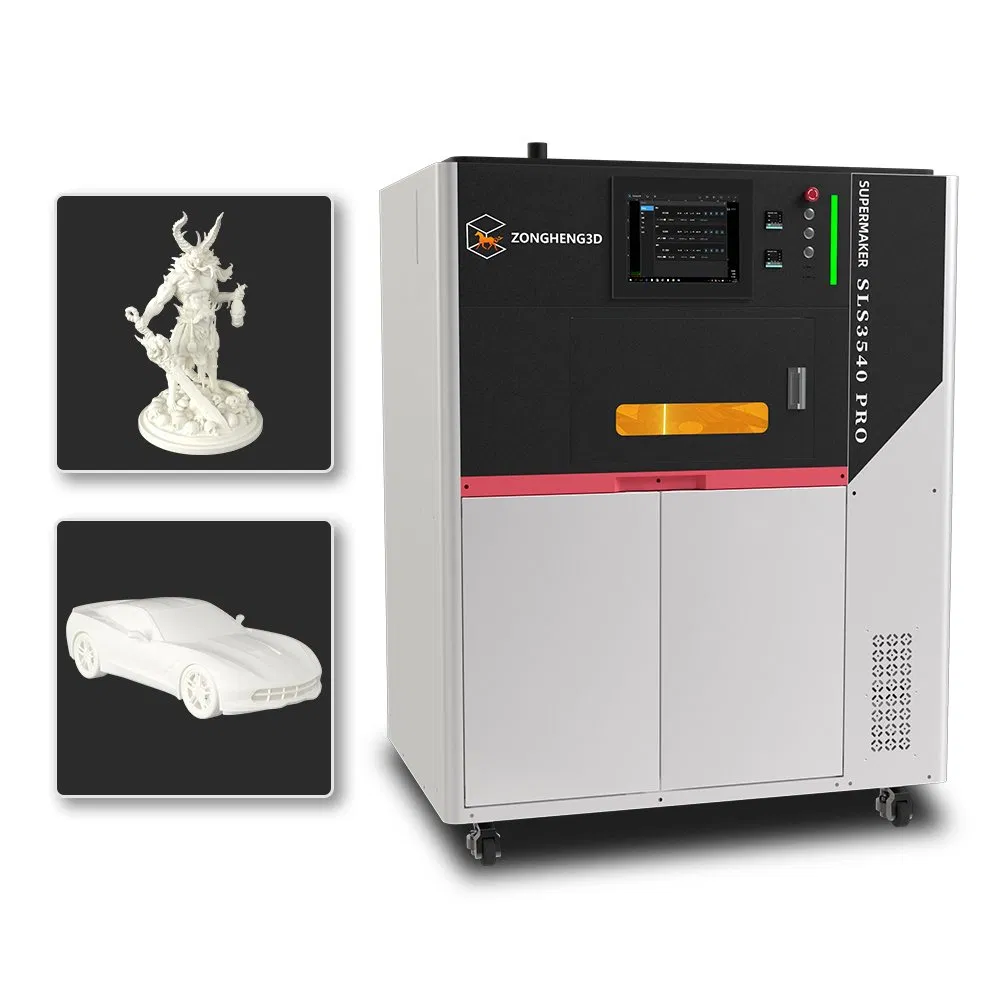

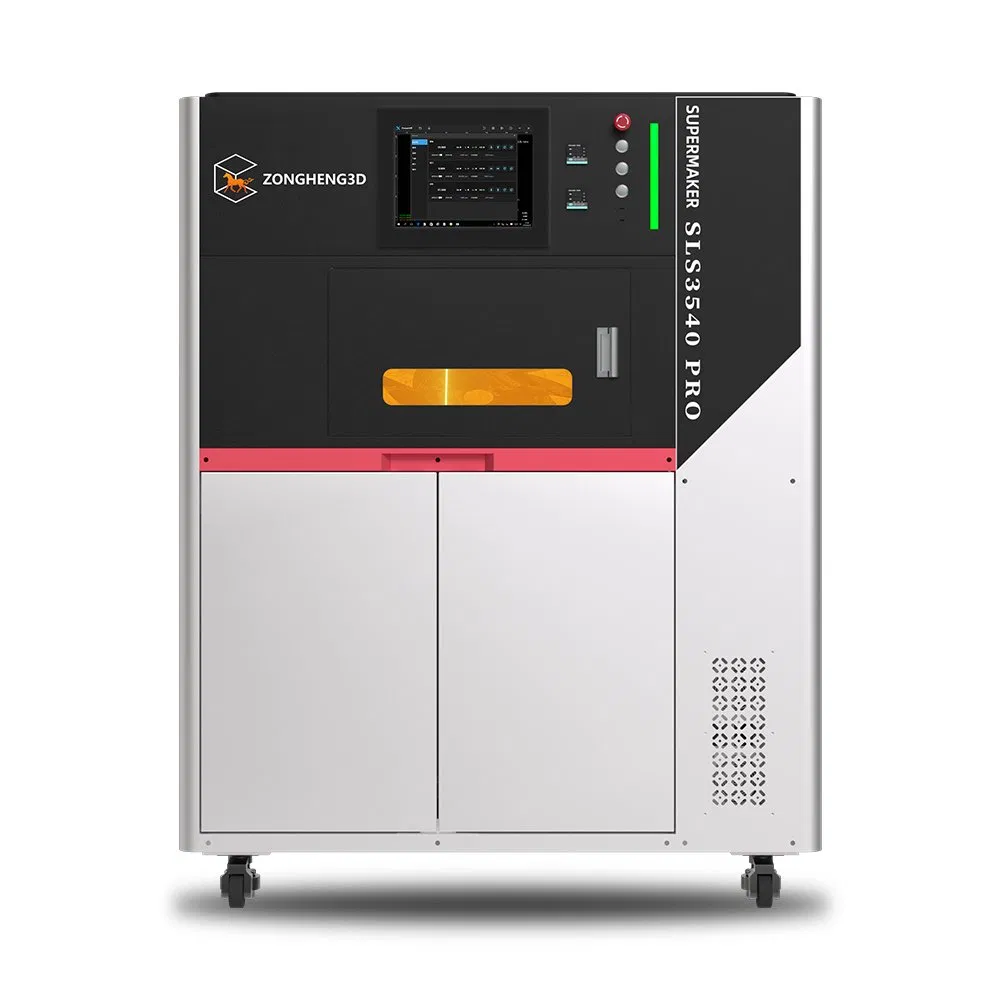

SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes
SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes
SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes
SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes
SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes
1 / 5
SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes
SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes
SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes
SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes
SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes

SLS 3540 PRO Industrial 3D Printer Large-Format Selective Laser Sintering for Automotive, Aerospace & Functional Prototypes

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
SLS 3540 Pro
File Format
STL
Connection
USB
Precision
0.3mm
Thickness
0.1-0.3mm
Printer Material
PA12
Forming Tech
SLS
Operating System
64 Bits Window 10
Package
Carton
Specification
1350*950*1900MM
HS Code
8485200000
Capacity
20 Sets/Month
Technical Specifications
Product ModelSLS3540 PRO
Printing Size350*350*430mm
Laser TypeFiber Laser, 1*300W
Layer Thickness0.1-0.3mm
Max Cabin Temperature190ºC
SupportsNo Need Support
Thermal Field ControlMulti-area independent control
Powder Feeding MethodSingle feed powder
Scanning Speed8-15m/s
Support InterfaceRS232/RS485, Ethernet, USB, Canopen
Online Temperature Comp.Support
Machine Size (L*W*H)1650*980*1850mm
ScannerHigh-precision Digital Galvo System
Net Weight750KG
Inert Gas ProtectionNitrogen
Power Supply220V/50HZ
Operating Temperature18-30ºC
Max Molding Rate3000cm3/h
Material CapabilityPA11, PA12, TPU, Nylon with GF
Tank Capacity30KG
Control FunctionsManual/Automatic control, real-time parameters, 3D visualization, diagnostic functions.
Product Visuals
3D Printer Detail 1
3D Printer Detail 2
3D Printer Detail 3
3D Printer Application 1
3D Printer Application 2
3D Printer Application 3
Frequently Asked Questions
What is the build volume of the SLS3540 PRO?
The printer offers a generous printing size of 350*350*430mm, suitable for large industrial parts and functional prototypes.
Does this SLS printer require support structures?
No, one of the main advantages of this SLS technology is that it does not need support structures, allowing for complex geometries.
What materials are compatible with this machine?
The system supports a wide range of materials including PA11, PA12, TPU, and Nylon reinforced with Glass Fiber (GF).
What is the printing precision and layer thickness?
The machine achieves a precision of 0.3mm with an adjustable layer thickness ranging from 0.1mm to 0.3mm.
What type of laser does the printer use?
The SLS3540 PRO is equipped with a powerful 300W Fiber Laser for efficient and precise sintering.
What are the power and environmental requirements?
The printer runs on a 220V/50HZ power supply and operates best in a controlled environment between 18-30ºC.
