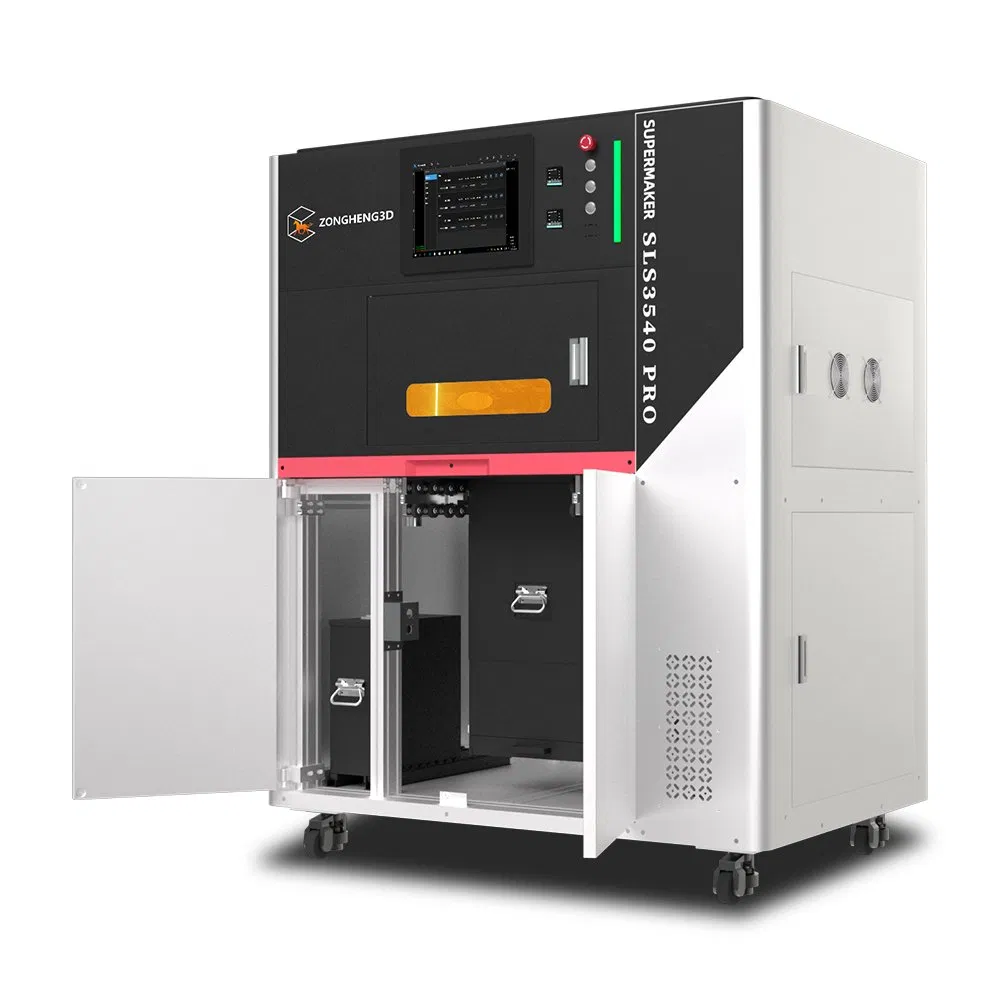

SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping
1 / 5
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping

SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer for Robust and Detailed Large Format Prototyping

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Model NO.
SLS 3540 Pro
File Format
STL
Connection
USB
Precision
0.3mm
Thickness
0.1-0.3mm
Printer Material
PA12
Forming Technology
SLS
Operating System
64 Bits Window 10
Transport Package
Carton
Specification
1350*950*1900MM
Origin
China
HS Code
8485200000
Production Capacity
20 Sets/Month
Product Description
Product ModelSLS3540 PRO
Printing Size350*350*430mm
Operating SoftwareIndependent research and development
Laser TypeFiber Laser, 1*300W
Layer Thickness0.1-0.3mm
Maximum Cabin Temperature190ºC
SupportsNo Need Support
Thermal Field ControlMulti-area independent control
Powder Feeding MethodSingle feed powder
Scanning Speed8-15m/s
Support InterfaceRS232/RS485, Ethernet, USB, Canopen
Real-time Online Temperature CompensationSupport
Machine Size (L*W*H)1650*980*1850mm
Slicing SoftwareSelf-development
ScannerHigh-precision Digital Galvo System
Net Weight (Without Material)750KG
Inert Gas ProtectionNitrogen
Power Supply220V/50HZ
Operating Temperature18-30ºC
Maximum Volume Molding Rate3000cm3/h
Data FormatSTL
Procedure Control UnitPLC
MaterialPA11, PA12, TPU, Nylon with GF
WarrantyOne Year
Tank Capacity30KG
Control Software FunctionManual and automatic control methods, online real-time modification of construction parameters, 3D visualization, diagnostic functions.
SLS 3540 PRO Advanced Selective Laser Sintering 3D Printer
SLS 3540 PRO Industrial 3D Printer
SLS 3540 PRO Laser Sintering Process
SLS 3540 PRO Technical View
SLS 3540 PRO Sample Parts
SLS 3540 PRO Machine Details
Frequently Asked Questions
1. What is the maximum printing size of the SLS 3540 PRO?
The printer offers a generous build volume of 350*350*430mm, suitable for large format prototyping and production.
2. Does this printer require support structures for complex geometries?
No, thanks to Selective Laser Sintering (SLS) technology, the unsintered powder acts as a natural support, allowing for complex geometries without additional structures.
3. What types of materials can be used with this SLS printer?
It is compatible with a wide range of materials including PA11, PA12, TPU, and Nylon reinforced with Glass Fiber (GF).
4. What is the precision and layer thickness of the SLS 3540 PRO?
The printer achieves a precision of 0.3mm with an adjustable layer thickness ranging from 0.1mm to 0.3mm for fine detail.
5. What scanning speed does the system support?
Equipped with a high-precision digital Galvo system, it supports scanning speeds between 8 to 15 meters per second.
6. What are the power and environmental requirements for operation?
The machine requires a 220V/50HZ power supply and operates optimally in an environment between 18-30ºC.
