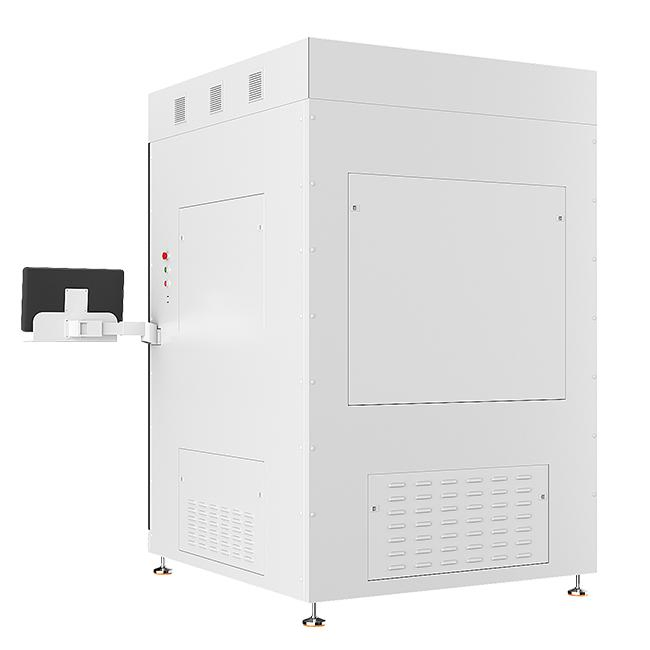

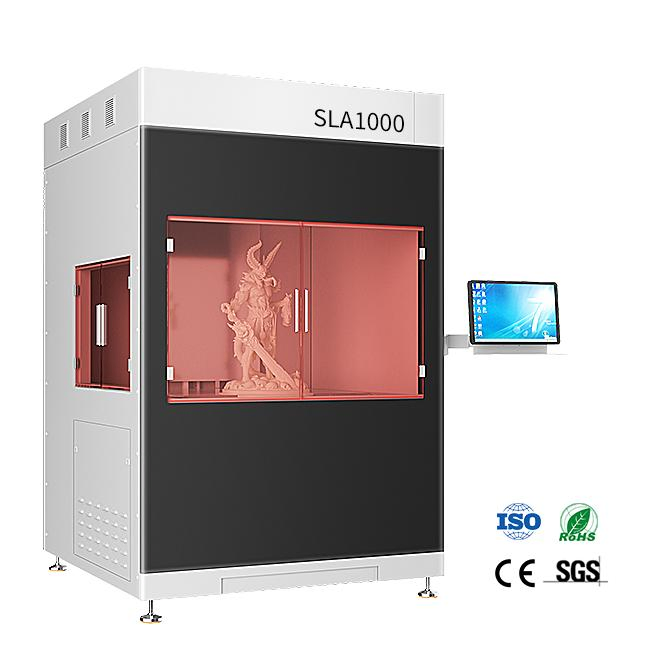

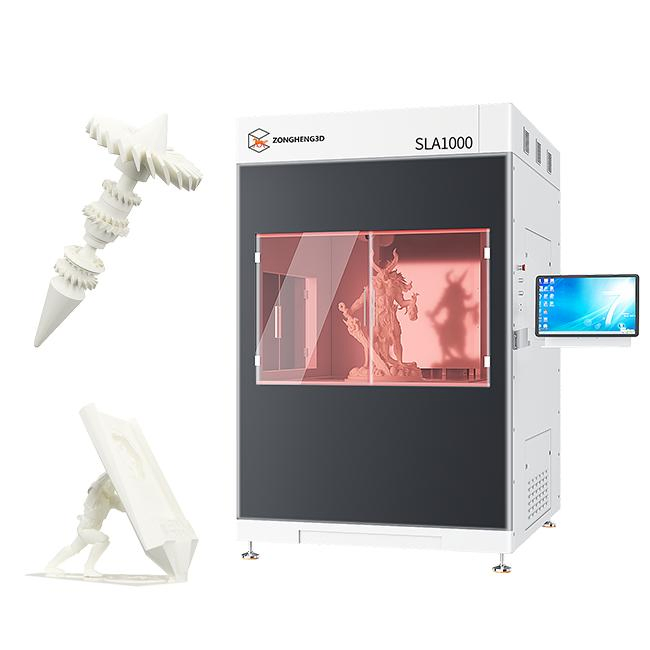

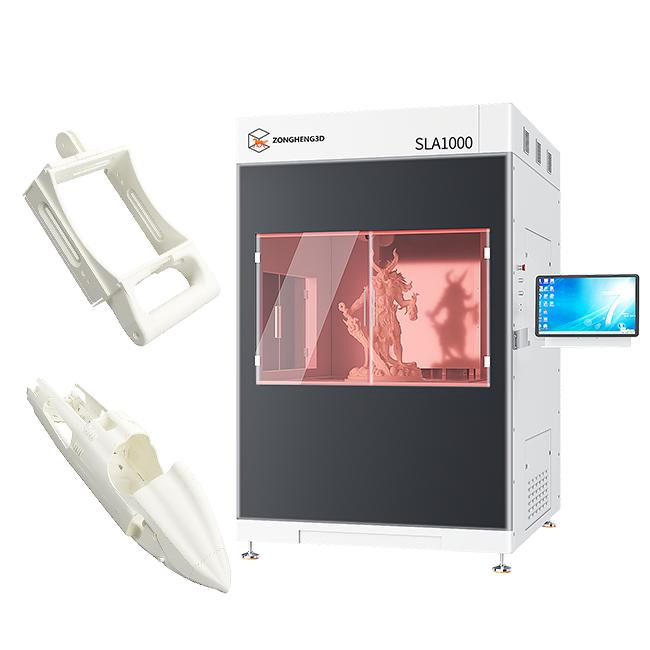

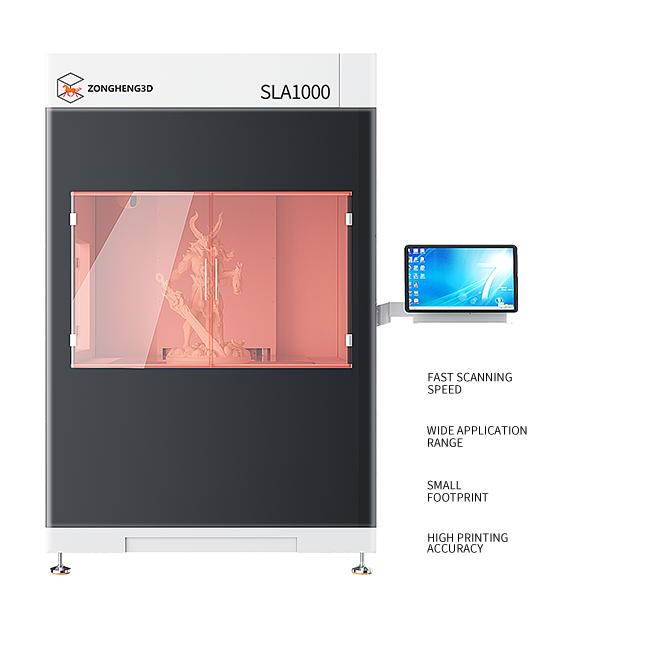

SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format
SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format
SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format
SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format
SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format
1 / 5
SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format
SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format
SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format
SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format
SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format

SLA 1000 3D Printer - High-Performance Industrial SLA Printing with Large Format

Customization: Available
Warranty: 1 Year
File Format: SLC, STL
Send Inquiry

Product Description

Basic Info.
Model NO.
SLA 1000
Nozzle Number
1
Connection
USB
Precision
100-200mu
Thickness
0.01-0.15mm
Printer Material
Resin
Forming Technology
SLA
Operating System
Windows 7
Transport Package
Wooden Case
Specification
1.40M*1.50M*2.20M
Origin
China
HS Code
8485200000
Production Capacity
20 Sets/Month
Product Description
Product ModelZH-SLA 1000

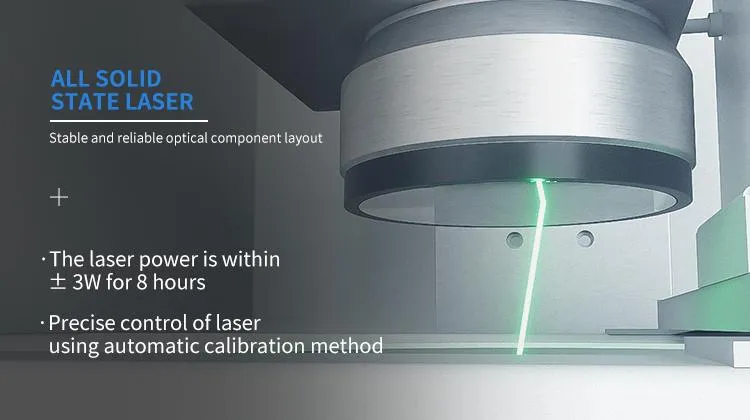

Laser typePulse, UV, all sold stste laser
Wawelength355NM
Laser power3W
Coating methodAutomatic vacuum adsorpthn coating
Print layer thickness0.05-0.2MM
Import file formatSLC, STL
Material volume860kg
Spot diameter0.1-0.6MM
Operating systemWin7 (32-bit)
Operating softwareZH6.0
Equipment weightAbout 1800kg (exclude materials)
Network typeEthernet
Maximum model part weight100KG
Reference Production weight50-180G/H
Power supply parameters220V/50HZ
Recommended print layer thickness0.1MM
Maximum forming volume1000x1000x600mm (customizable)
Recommended part scanning speed6000MM/S
Recommended part jumping speed1200MM/S
Working ambient temperature20-28ºC

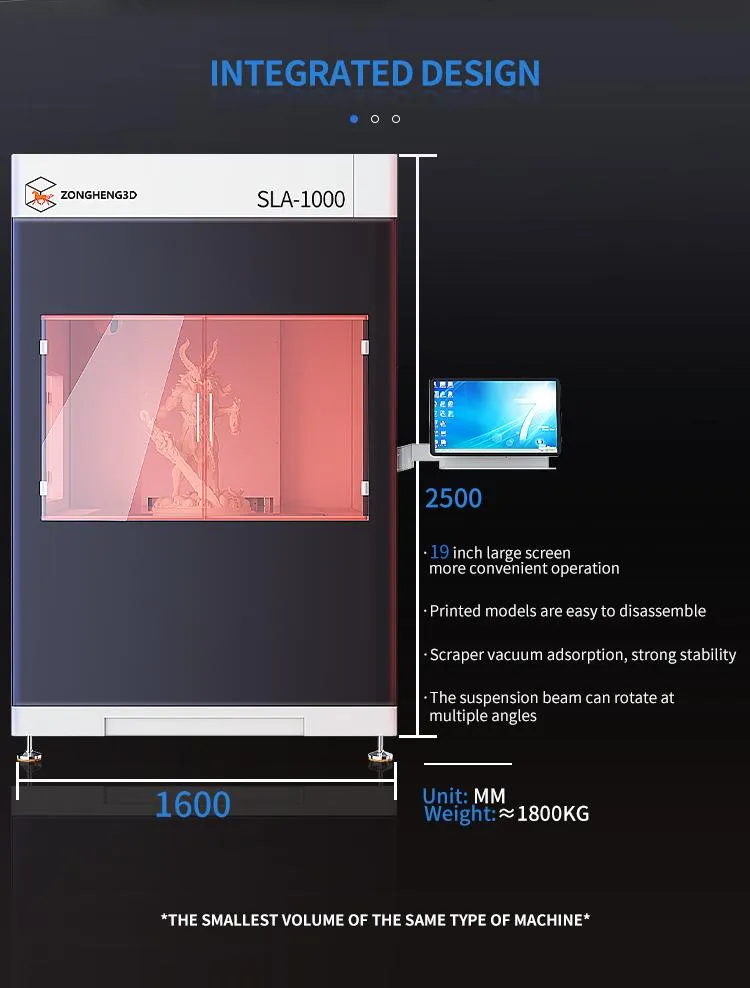

Machine size [W* D * H]1.60M*1.70M*2.50M
Relative humidity of working environment<40%
Product Visuals

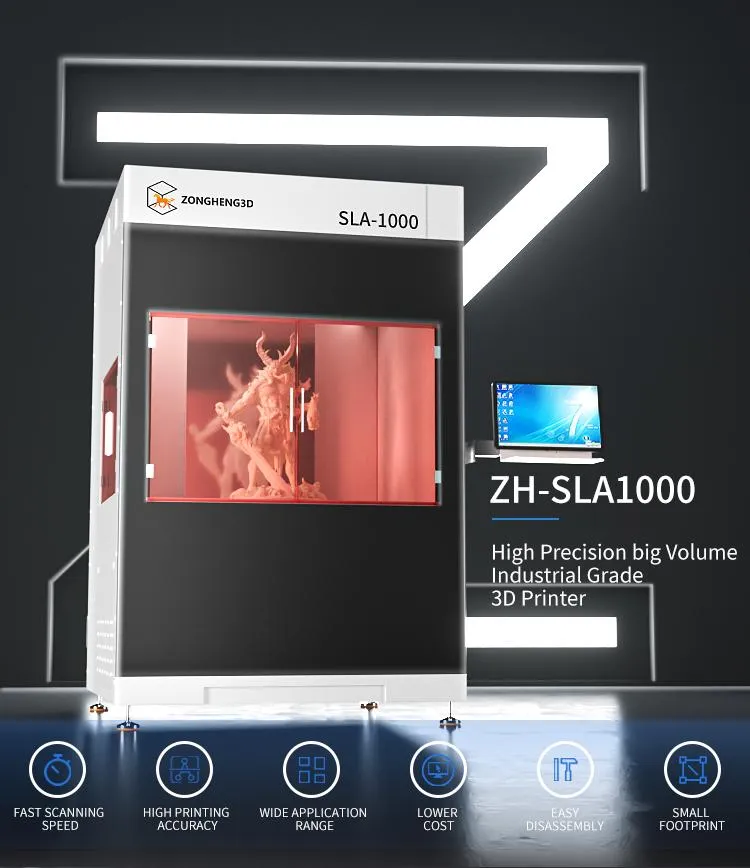

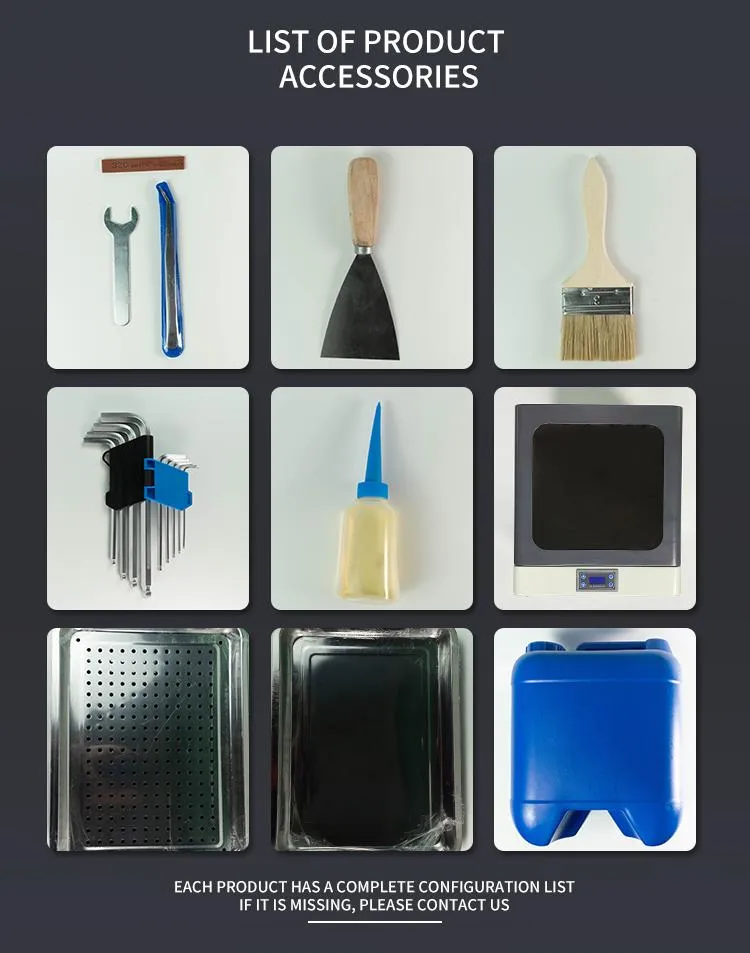

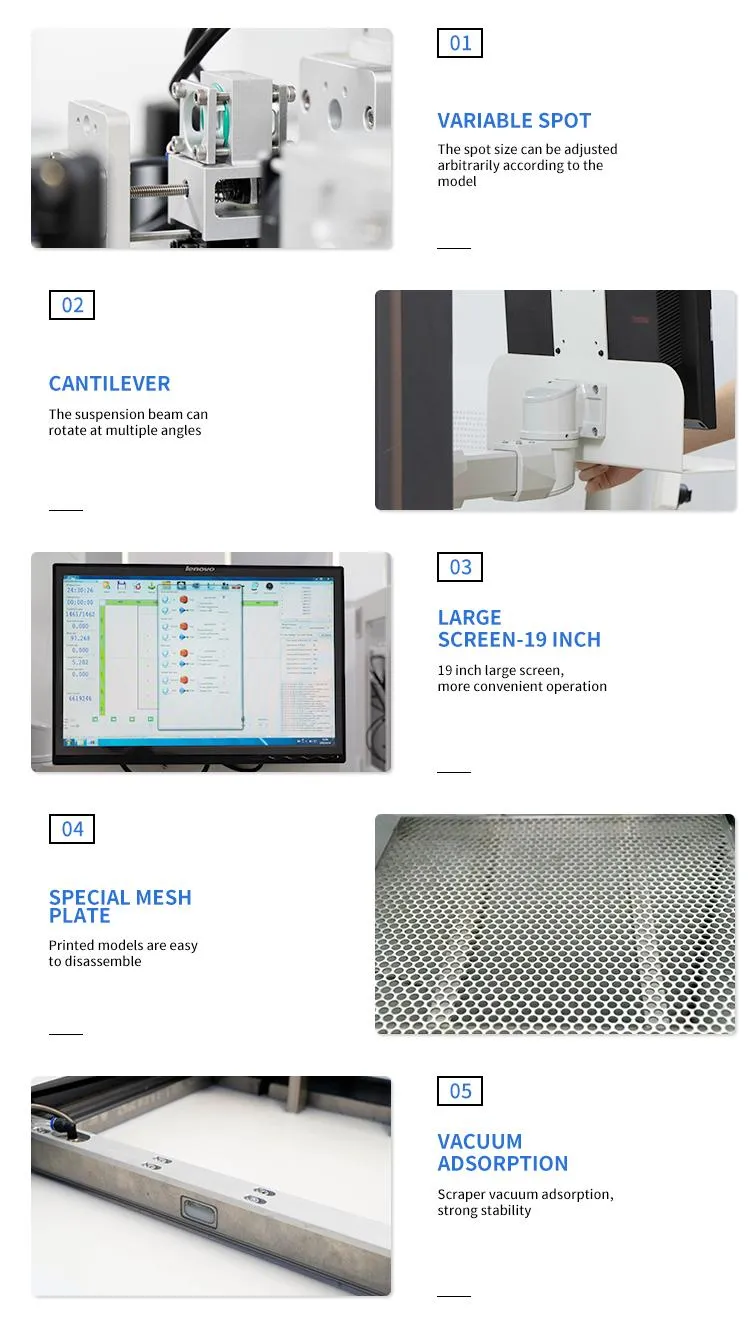

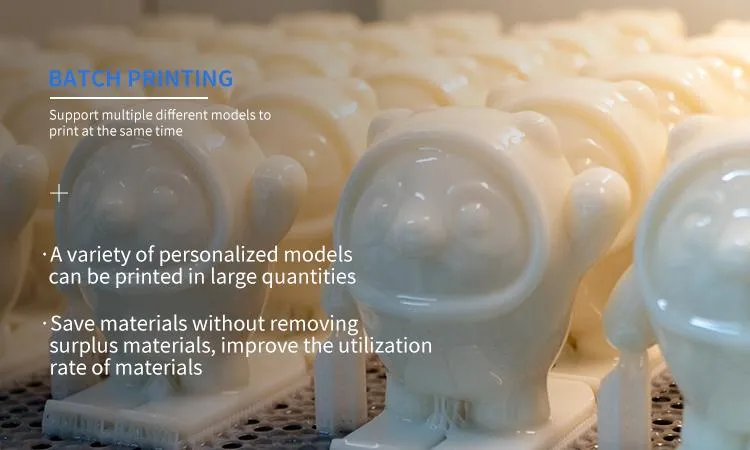

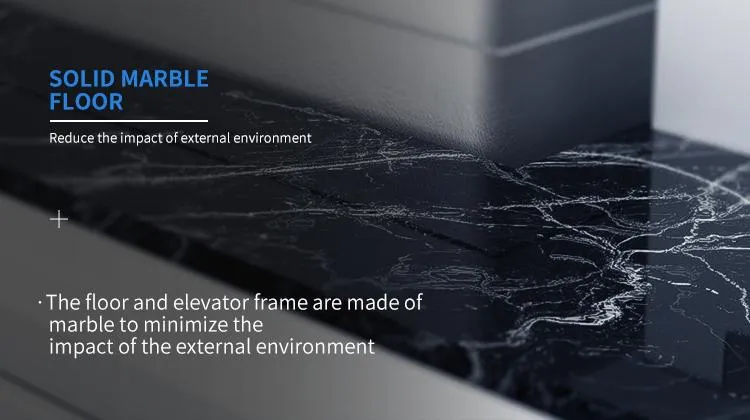

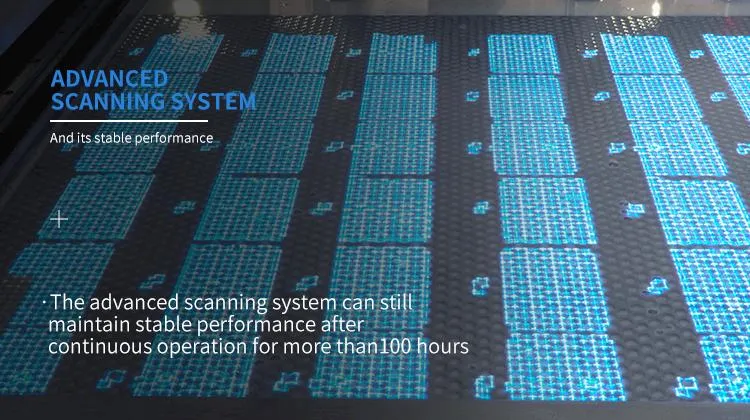

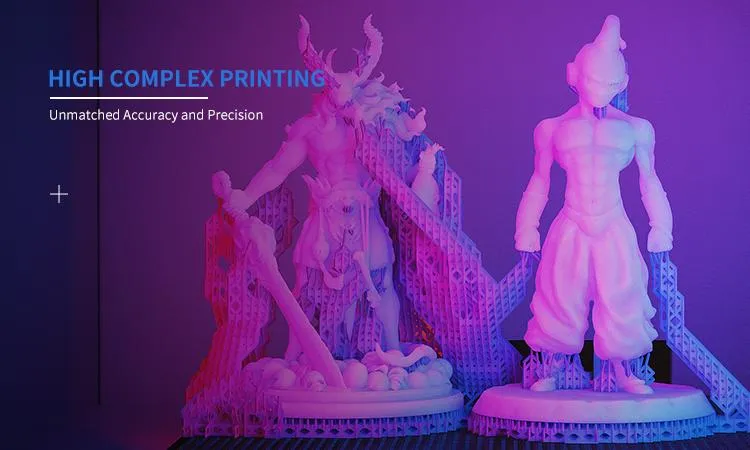

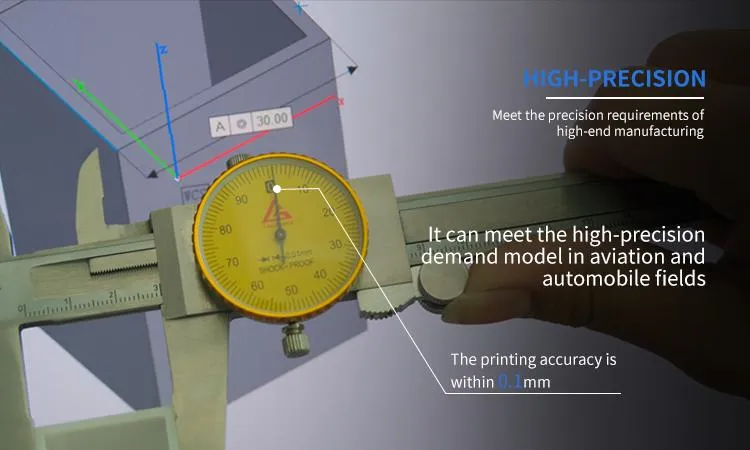

SLA 1000 3D Printer View 1 SLA 1000 3D Printer View 2 SLA 1000 3D Printer View 3 SLA 1000 3D Printer View 4 SLA 1000 3D Printer View 5 SLA 1000 3D Printer View 6 SLA 1000 3D Printer View 7 SLA 1000 3D Printer View 8 SLA 1000 3D Printer View 9 SLA 1000 3D Printer View 10 SLA 1000 3D Printer View 11 SLA 1000 3D Printer View 12 SLA 1000 3D Printer View 13 SLA 1000 3D Printer View 14 SLA 1000 3D Printer View 15 SLA 1000 3D Printer View 16
Frequently Asked Questions
What is the maximum forming volume of the SLA 1000?
The maximum forming volume is 1000x1000x600mm, which is also customizable based on specific requirements.
What materials can be used with this industrial 3D printer?
The SLA 1000 is specifically designed to work with high-quality resin materials.
Which file formats are supported by the operating software?
The system supports industry-standard SLC and STL file formats for easy integration with design software.
What is the scanning speed and layer thickness capability?
The recommended scanning speed is 6000MM/S, with a print layer thickness range of 0.05-0.2MM (0.1MM recommended).
What are the power and environmental requirements for operation?
It requires a 220V/50HZ power supply. The ideal working temperature is 20-28ºC with relative humidity below 40%.
