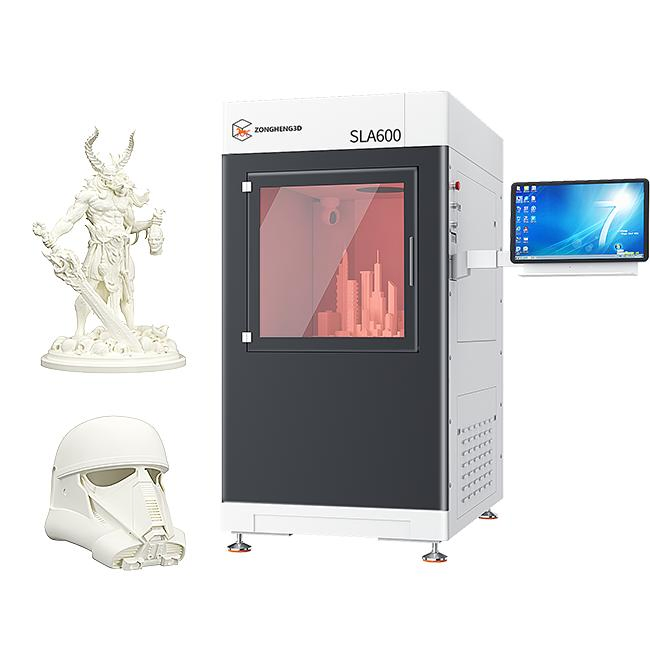

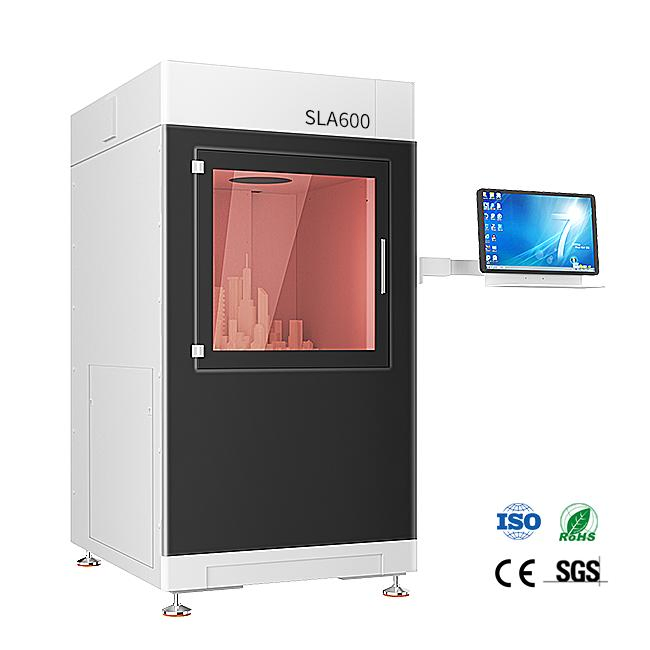

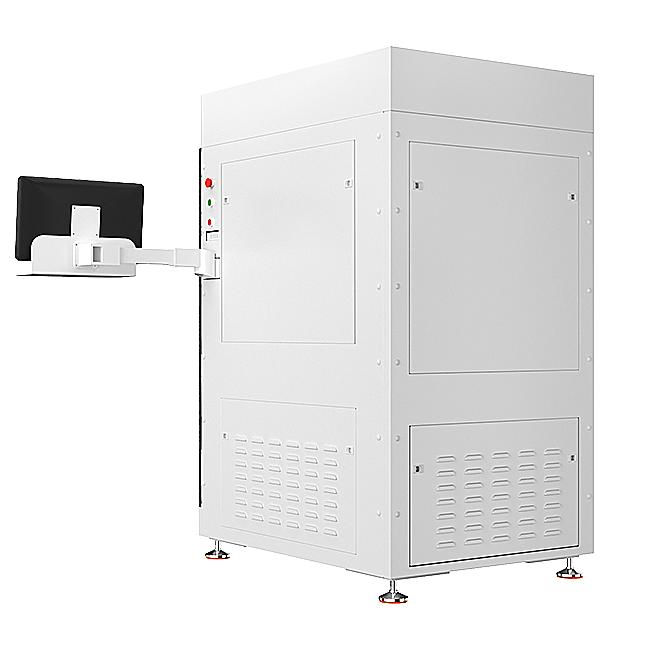

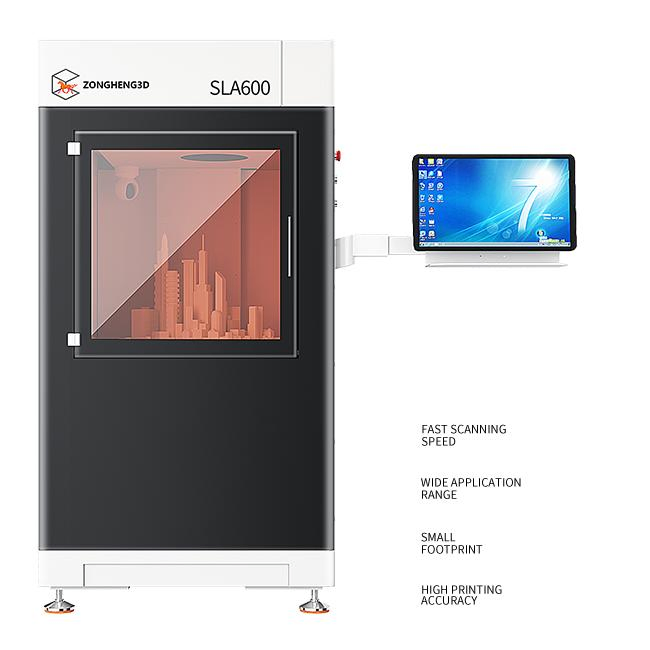

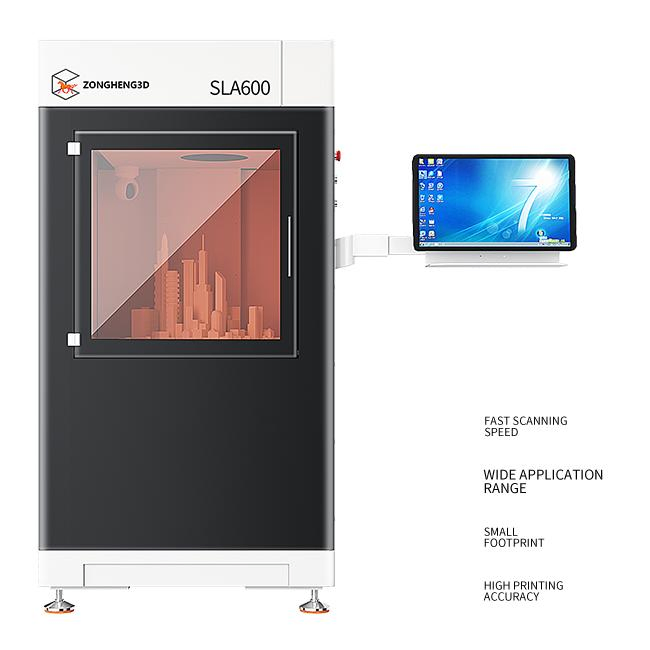

Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial
Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial
Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial
Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial
Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial
1 / 5
Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial
Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial
Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial
Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial
Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial

Professional SLA 600 3D Printer - Large Format Precision Printing for Industrial

Customization: Available
Warranty: 1 Year
File Format: SLC, STL
Send Inquiry

Product Description

Basic Specifications
⚙️ Model NO.: SLA 600
🎯 Precision: 100-200mu
📏 Thickness: 0.01-0.15mm
🧪 Material: Resin
💻 Operating System: Windows 7
📦 Dimensions: 0.99M*1.30M*1.85M
Technical Parameters
Parameter Item Detailed Specification
Laser TypePulse, UV, all solid state laser
Wavelength355NM
Laser Power3W
Coating MethodAutomatic vacuum adsorption coating
Print Layer Thickness0.05-0.2MM
Import File FormatSLC, STL
Material Volume180L (approx. 225kg)
Spot Diameter0.1-0.6MM
Operating SoftwareZH6.0
Equipment WeightApprox. 860kg
Network TypeEthernet
Max Model Part Weight70KG
Production Weight50-180G/H
Power Supply220V/50HZ
Max Forming Volume600x600x400mm (Customizable)
Scanning Speed6000MM/S
Ambient Temperature20-28ºC
Product Presentation

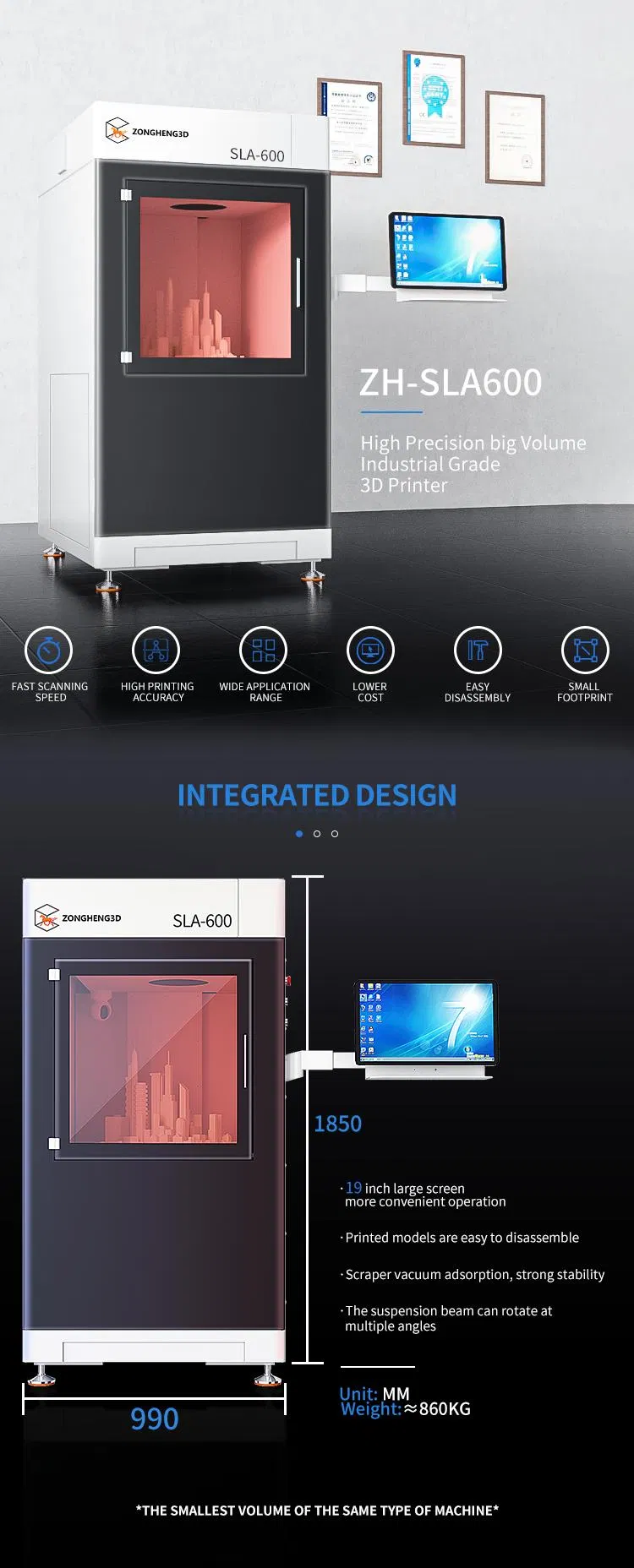

SLA 600 Industrial 3D Printer

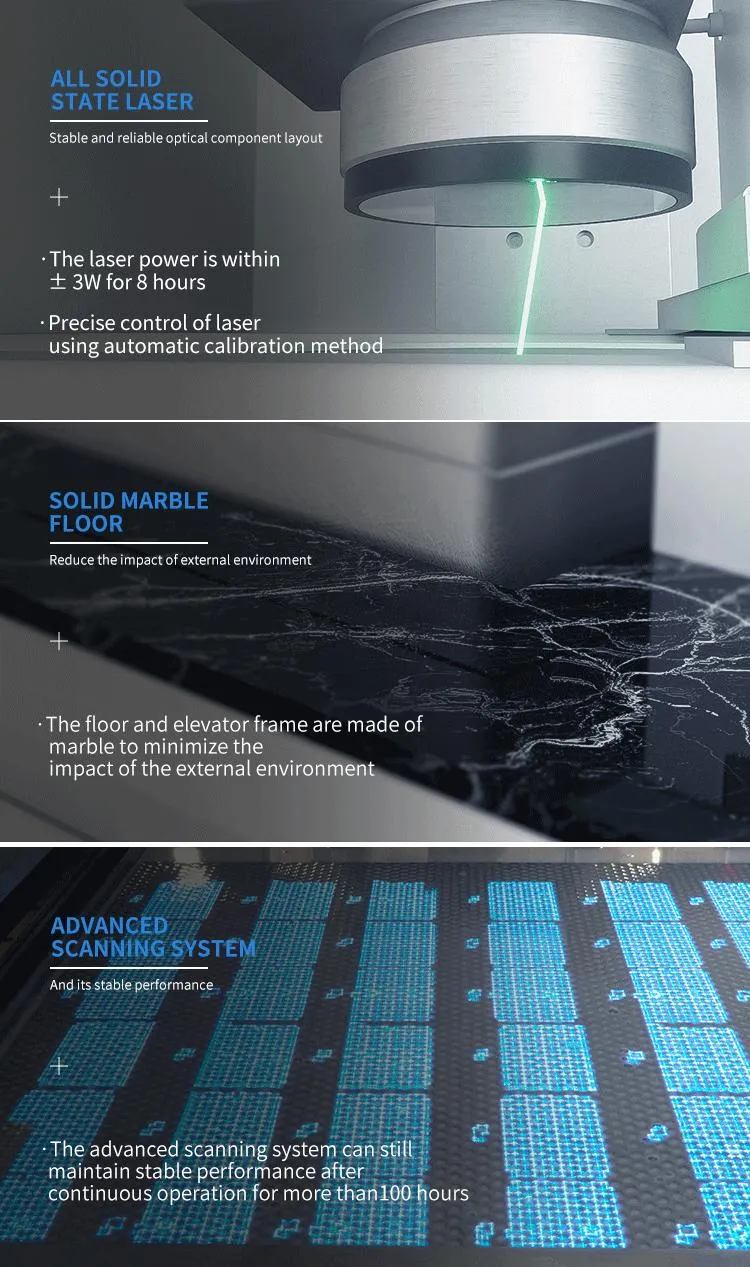

Precision Printing Details
SLA Technology Showcase

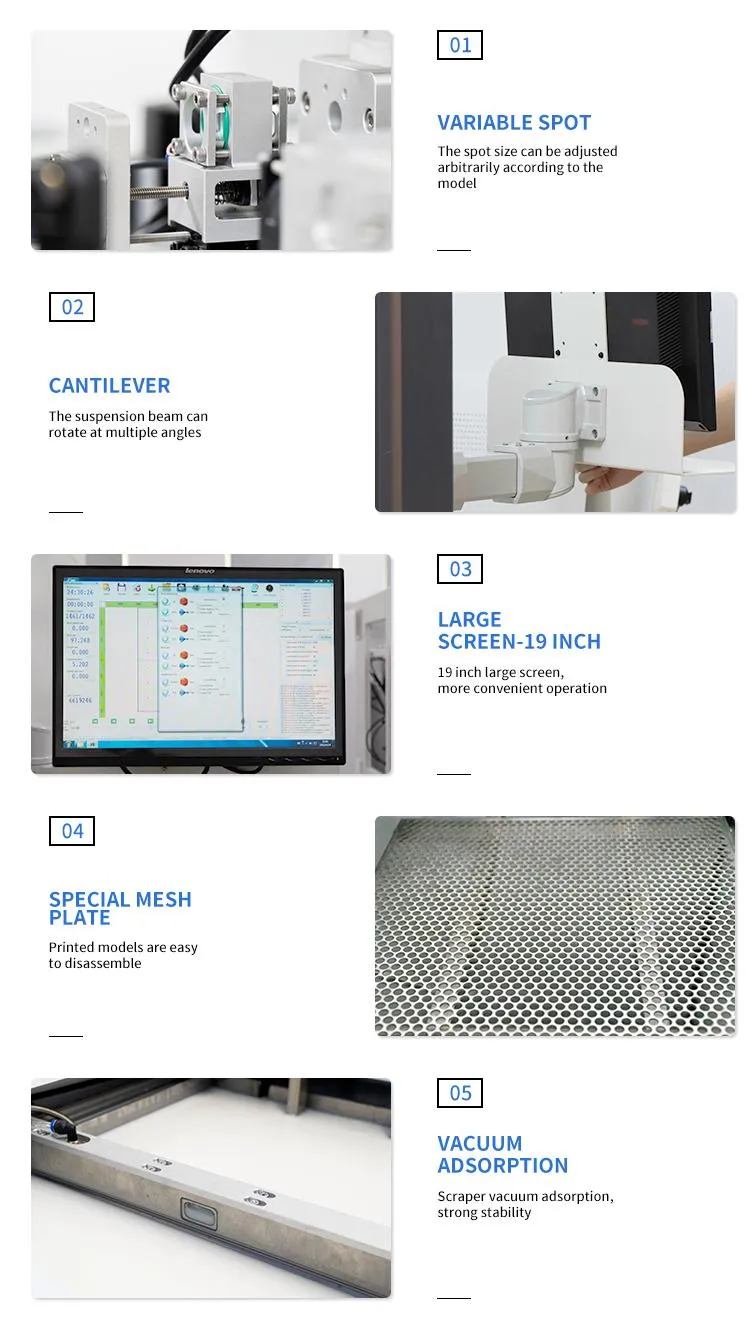

Large Format Printing
Industrial Resin Printer
SLA 600 Component
3D Printing Sample

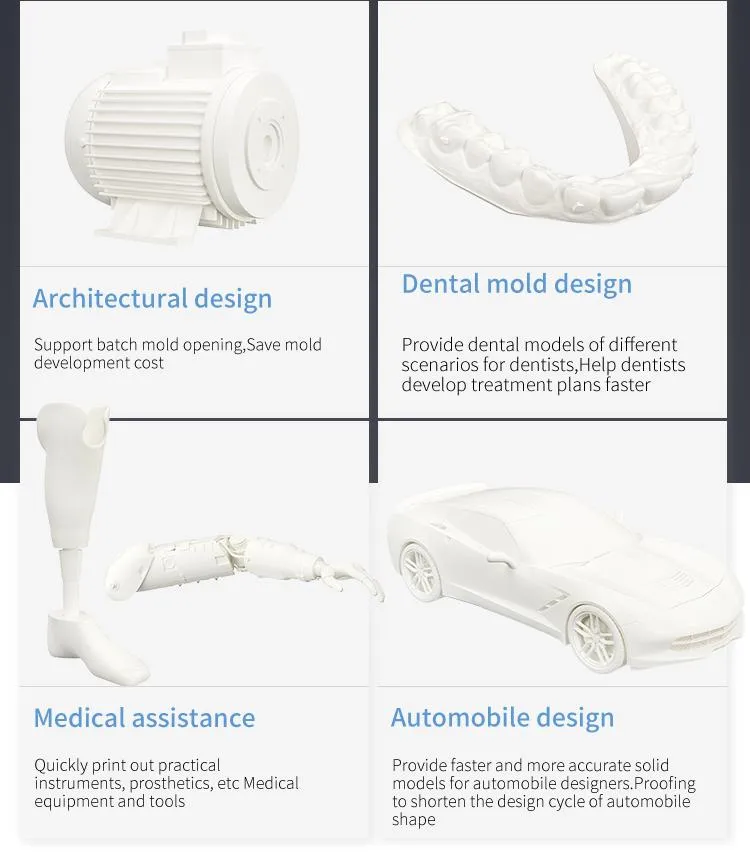

High Precision Detail
Industrial Application
Resin Forming Process
Professional SLA Equipment
Frequently Asked Questions
Q1: What is the maximum build volume of the SLA 600?
The standard maximum forming volume is 600x600x400mm, and it can also be customized based on specific industrial requirements.
Q2: What types of materials are compatible with this printer?
This equipment primarily uses Resin as the printing material, supported by an automatic vacuum adsorption coating method for consistent quality.
Q3: Which file formats can I use for importing designs?
The SLA 600 supports standard industrial 3D printing formats, specifically SLC and STL files.
Q4: What is the printing precision and layer thickness?
The machine offers high precision ranging from 100-200mu. The print layer thickness is adjustable between 0.05mm and 0.2mm, with 0.1mm being the recommended setting for optimal results.
Q5: What are the scanning and jumping speeds of the laser?
The recommended part scanning speed is 6000MM/S, while the jumping speed is 1200MM/S, ensuring efficient industrial production.
Q6: What are the environmental requirements for operation?
The printer operates best in an ambient temperature of 20-28ºC with a relative humidity of less than 40%.
