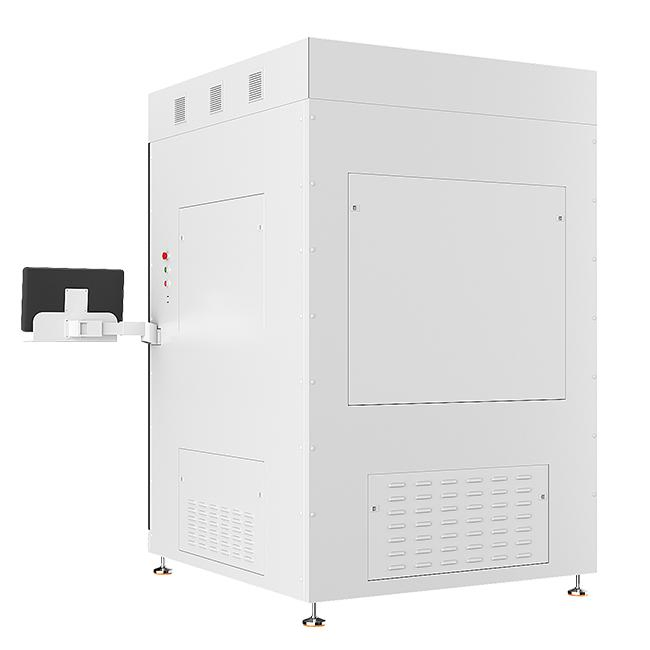

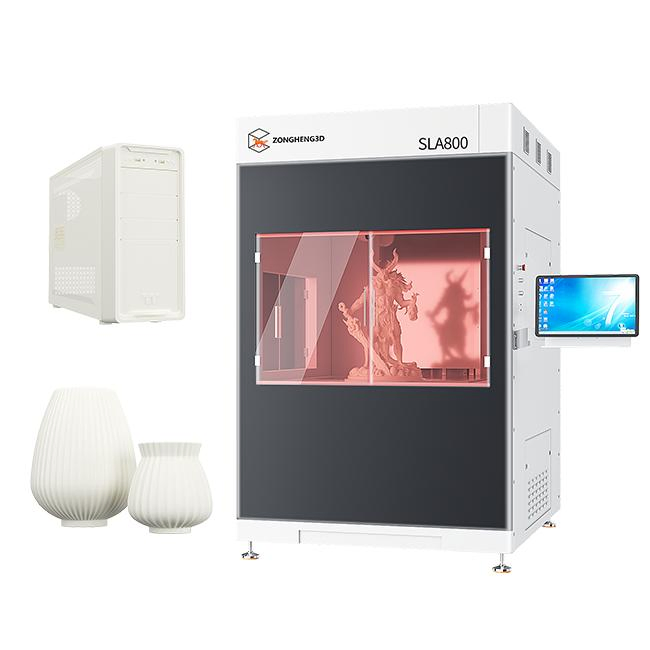

Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format
Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format
Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format
Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format
Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format
1 / 5
Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format
Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format
Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format
Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format
Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format

Industrial-Grade SLA 800 3D Printer - High Resolution and Large Format

Customization: Available
Warranty: 1 Year
File Format: SLC, STL
Send Inquiry

Product Description

i

Basic Information

Model NO.
SLA800
Nozzle Number
1
Connection
USB
Precision
100-200mu
Thickness
0.01-0.15mm
Printer Material
Resin
Forming Tech
SLA
Operating System
Windows 7
Package
Wooden Case
Specification
1.40M*1.50M*2.20M
HS Code
8485200000
Capacity
20 Sets/Month
⚙

Technical Specifications

Product ModelZH-SLA 800
Laser typePulse, UV, all solid state laser
Wavelength355NM
Laser power3W
Coating methodAutomatic vacuum adsorption coating
Print layer thickness0.05-0.2MM
Import file formatSLC, STL
Material volume392L, about 480Kg
Spot diameter0.075-0.8MM
Operating systemWin7 (32-bit)
Operating softwareZH5.0
Equipment weightAbout 1300kg (exclude materials)
Network typeEthernet
Maximum model part weight100KG
Reference Production weight50-180G/H
Power supply parameters220V/50HZ
Recommended layer thickness0.1MM
Maximum forming volume800x800x500mm (customizable)
Scanning speed15000MM/S
Jumping speed1200MM/S
Working temperature20-28ºC
Relative humidity<40%
📷

Product Gallery

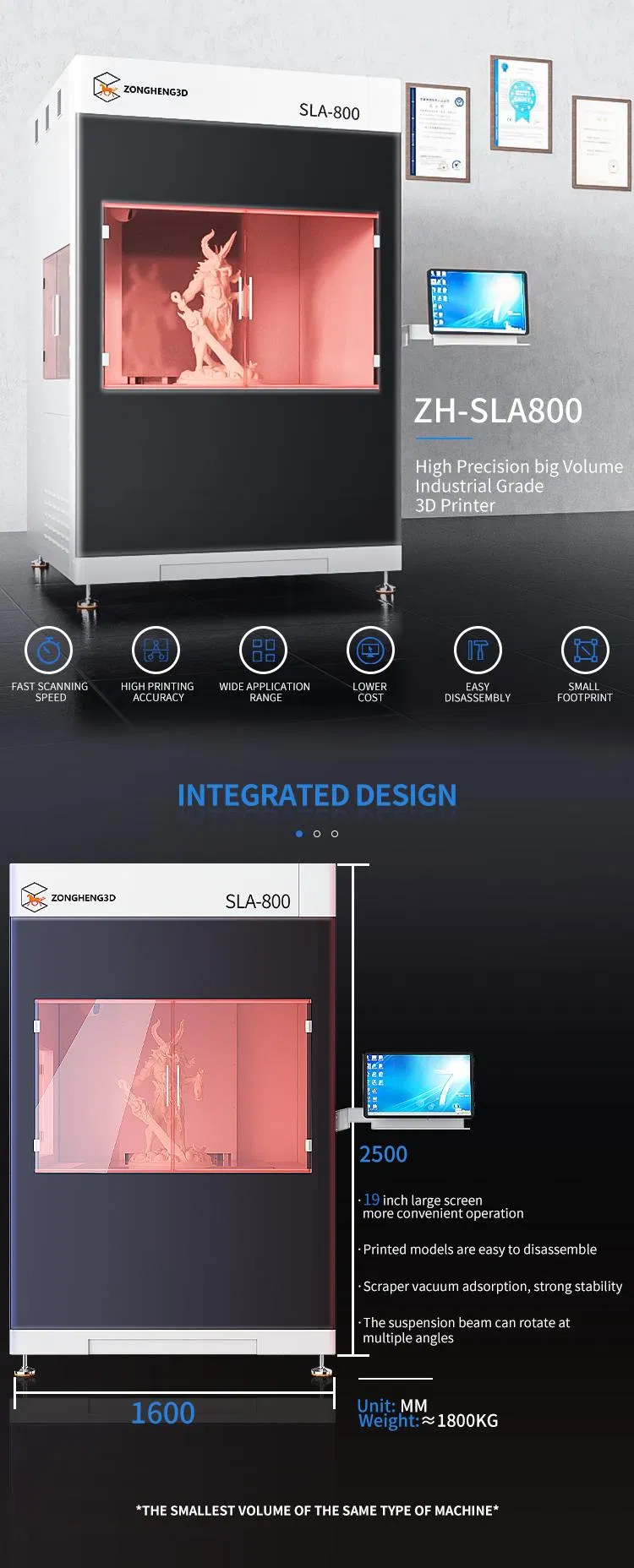

SLA 800 3D Printer View 1

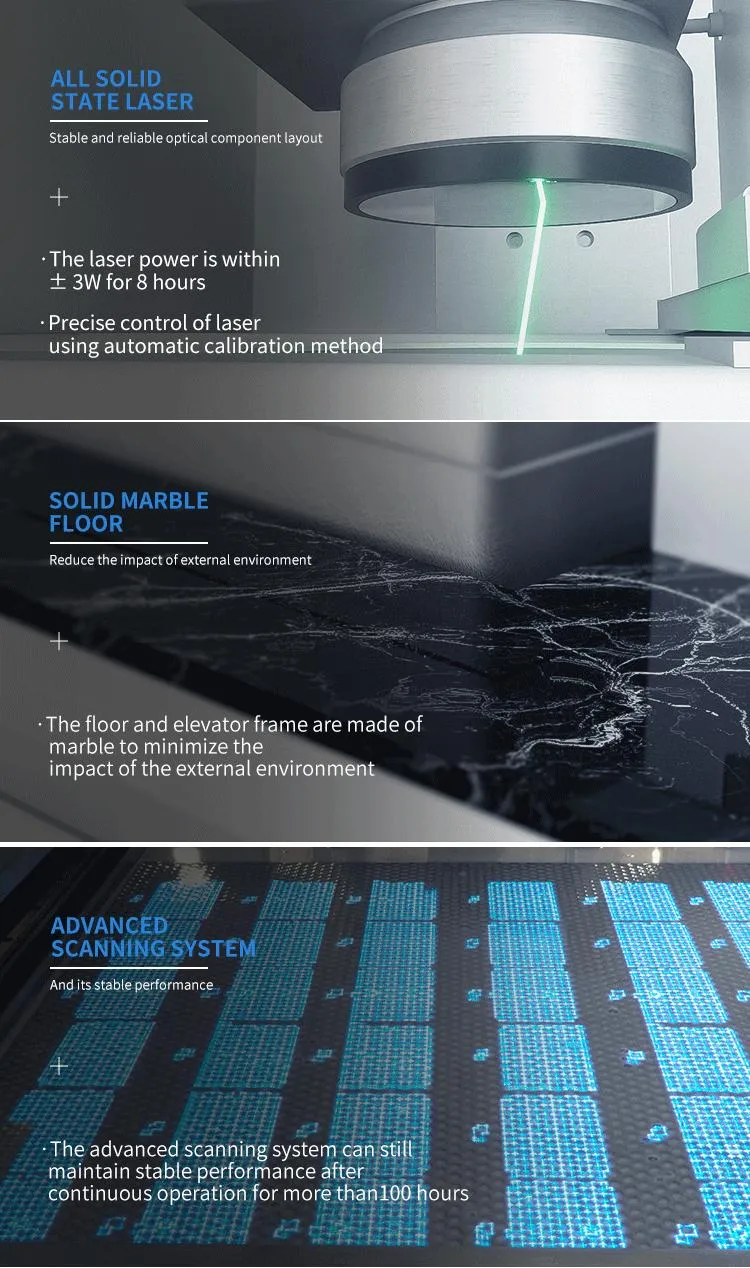

SLA 800 3D Printer View 2

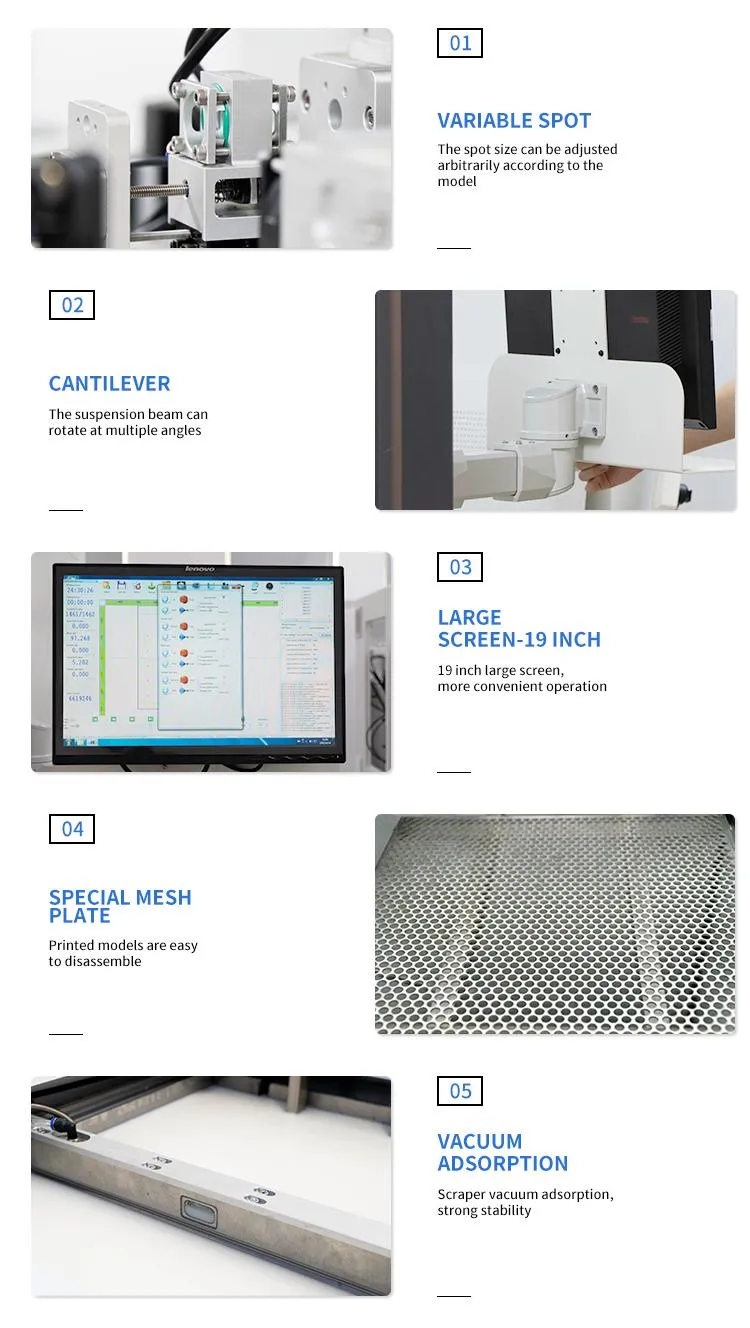

SLA 800 3D Printer View 3
SLA 800 3D Printer View 4

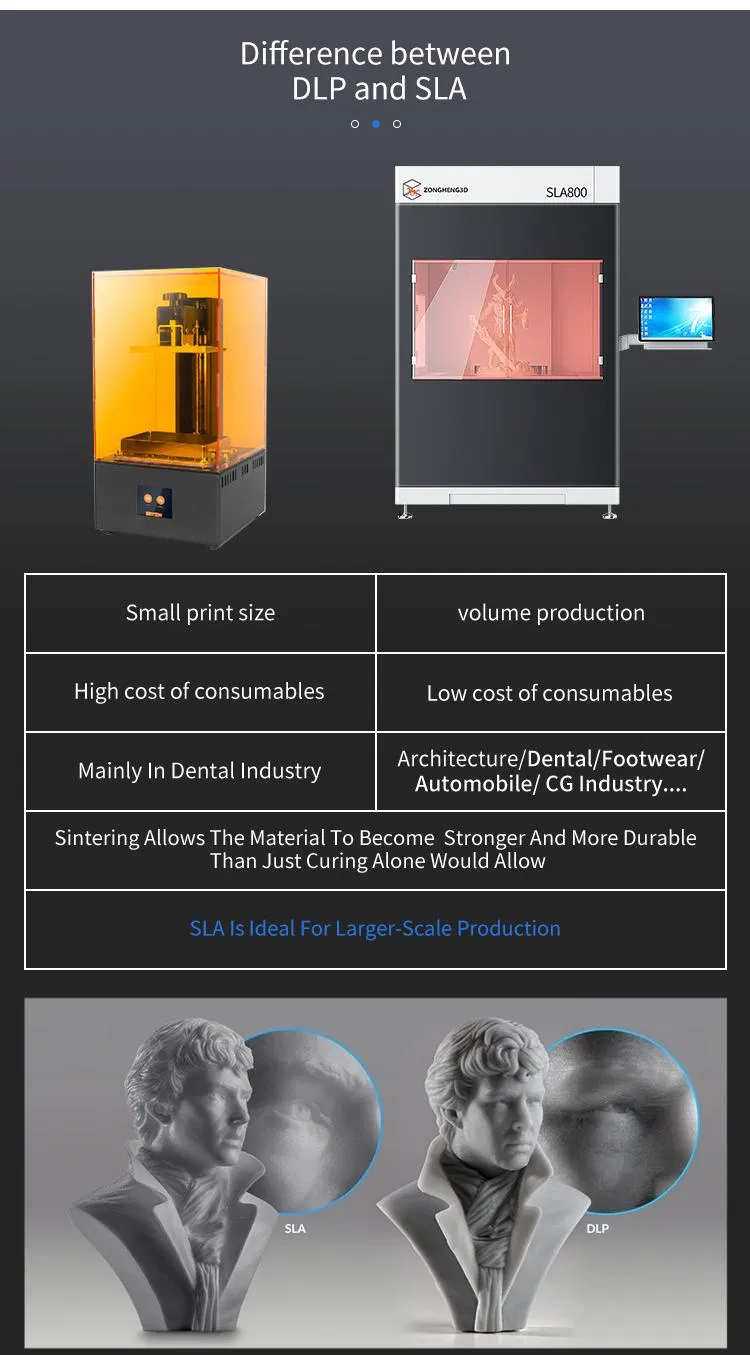

SLA 800 3D Printer View 5
SLA 800 3D Printer View 6
SLA 800 3D Printer View 7
SLA 800 3D Printer View 8
SLA 800 3D Printer View 9
?

Frequently Asked Questions

What is the maximum build volume of the SLA800?
The standard maximum forming volume is 800x800x500mm, and it can be customized according to specific requirements.
What type of laser and wavelength does this printer use?
The machine utilizes a 355nm UV solid-state pulse laser with a power of 3W for high-precision resin curing.
What are the supported file formats for printing?
The system supports standard industrial 3D printing formats, including SLC and STL.
What is the recommended layer thickness for optimal results?
While the printer supports a thickness range of 0.05-0.2mm, the recommended print layer thickness for most projects is 0.1mm.
What kind of operating environment is required?
The printer operates best at a temperature between 20-28ºC with a relative humidity of less than 40%.
How is the printing material applied during the process?
The SLA800 uses an automatic vacuum adsorption coating method to ensure even and precise layers of resin.
