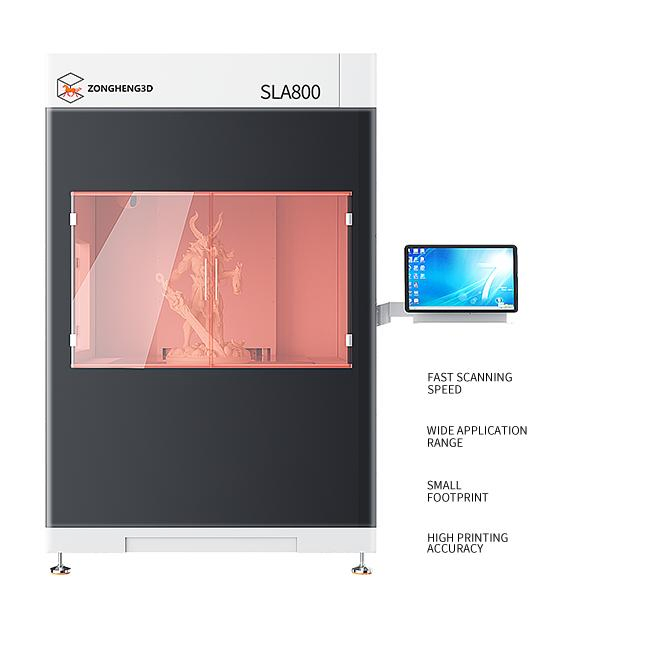

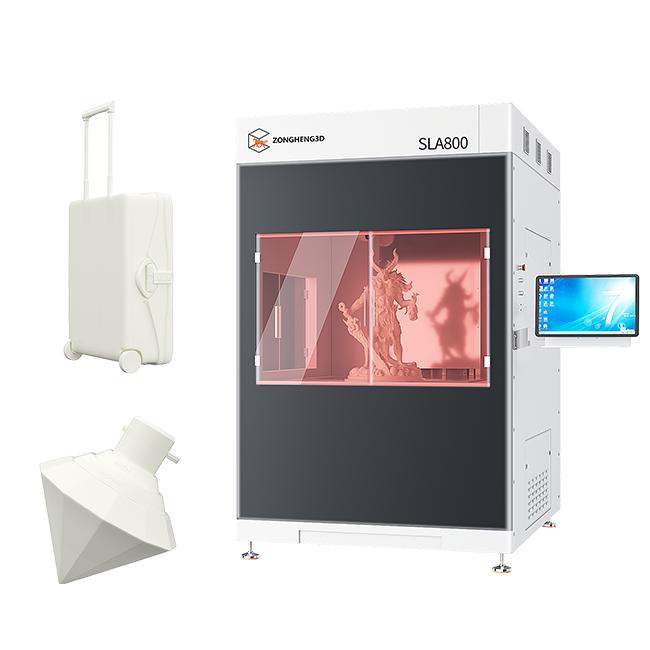

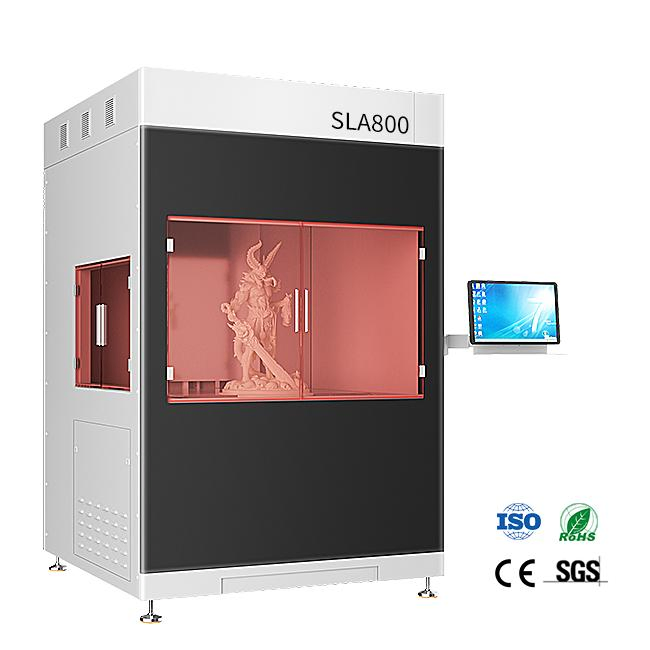

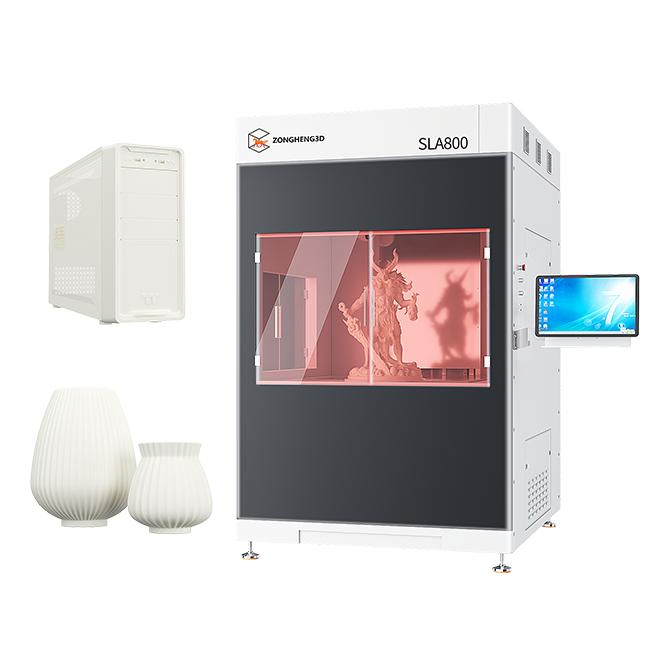

Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing
Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing
Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing
Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing
Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing
1 / 5
Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing
Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing
Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing
Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing
Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing

Industrial-Grade SLA 800 3D Printer with High Precision and Large Format Printing

Customization: Available
Warranty: 1 Year
File Format: SLC, STL
Send Inquiry

Product Description

⚙️ Basic Specifications
📦
Model NO. SLA800
🔬
Precision 100-200mu
📏
Layer Thickness 0.01-0.15mm
🧪
Printer Material Resin
⚡
Technology SLA
💻
OS Support Windows 7
📊 Technical Data Sheet
Product ModelZH-SLA 800
Laser TypePulse, UV, all solid state laser
Wavelength355NM
Laser Power3W
Coating MethodAutomatic vacuum adsorption coating
Print Layer Thickness0.05-0.2MM
Import File FormatSLC, STL
Material Volume392L, about 480Kg
Spot Diameter0.075-0.8MM
Operating SoftwareZH5.0
Equipment WeightAbout 1300kg (exclude materials)
Network TypeEthernet
Maximum Model Weight100KG
Production Speed50-180G/H
Maximum Forming Volume800x800x500mm (customizable)
Machine Size1.40M * 1.50M * 2.20M
🖼️ Product Showcase

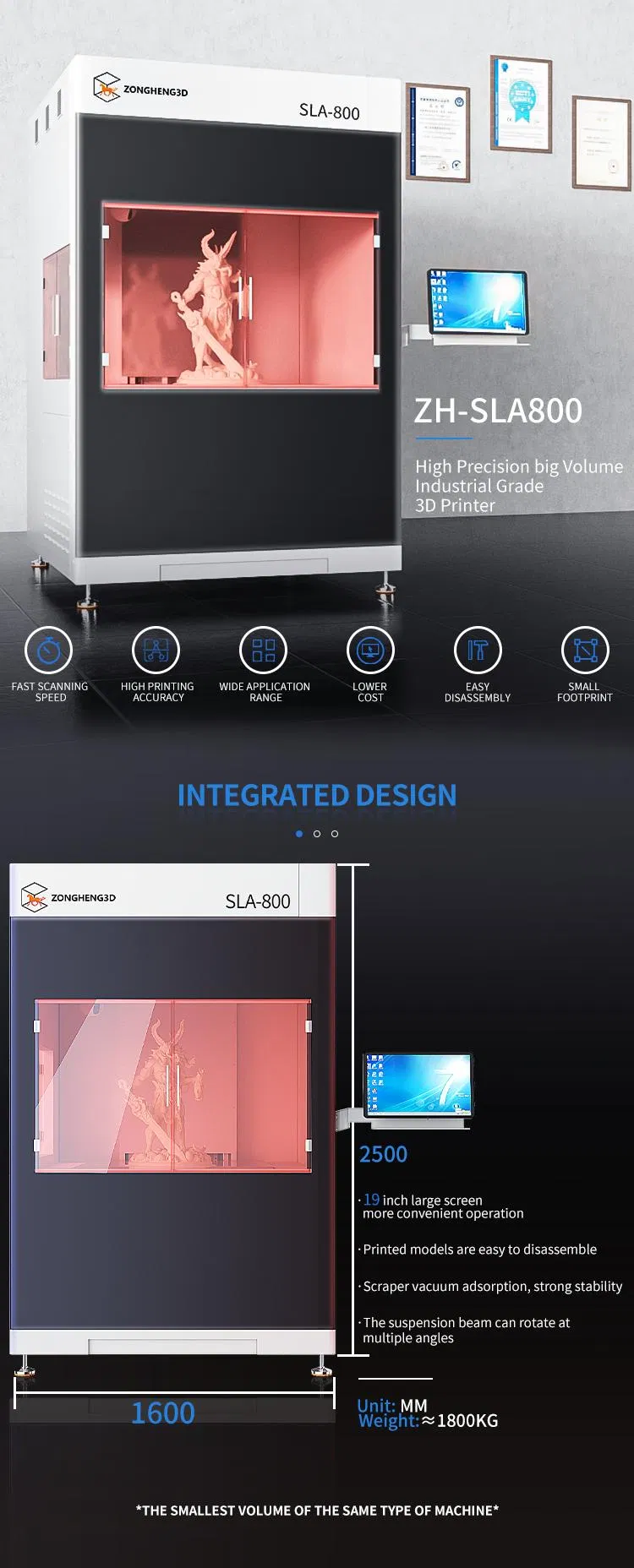

SLA 800 3D Printer Detail 1

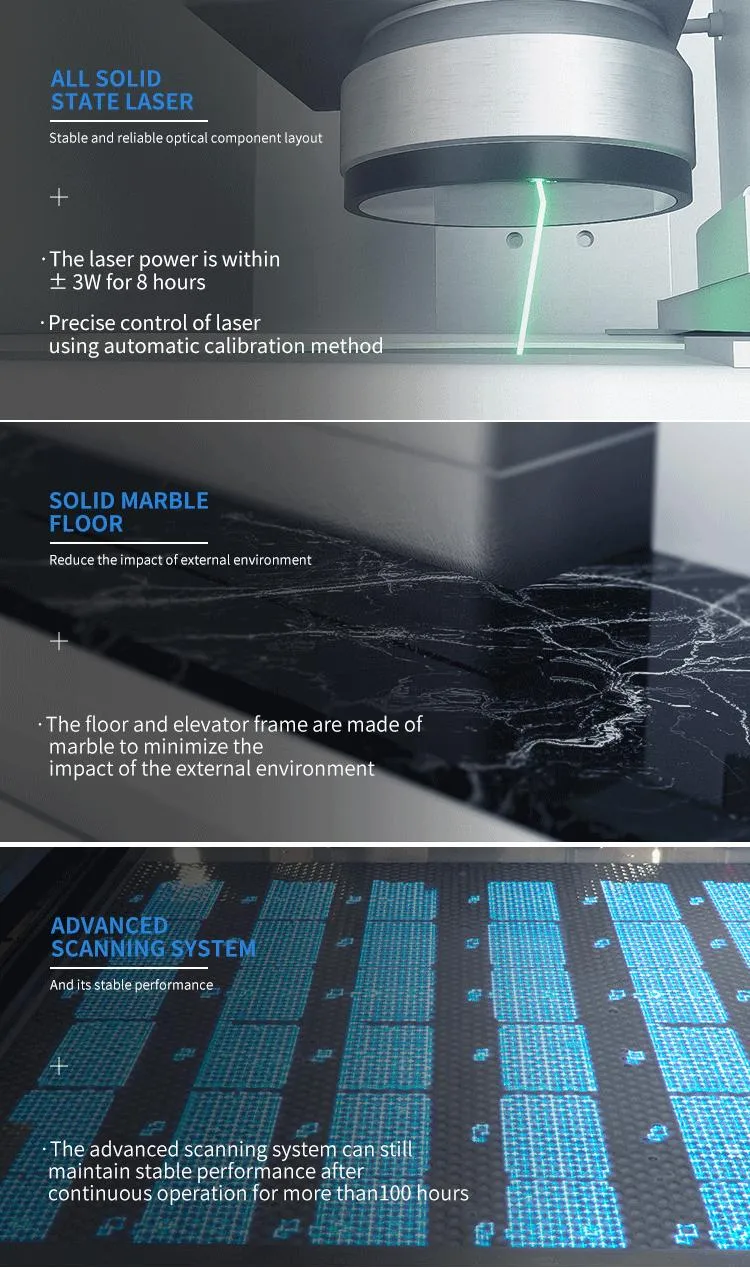

SLA 800 3D Printer Detail 2

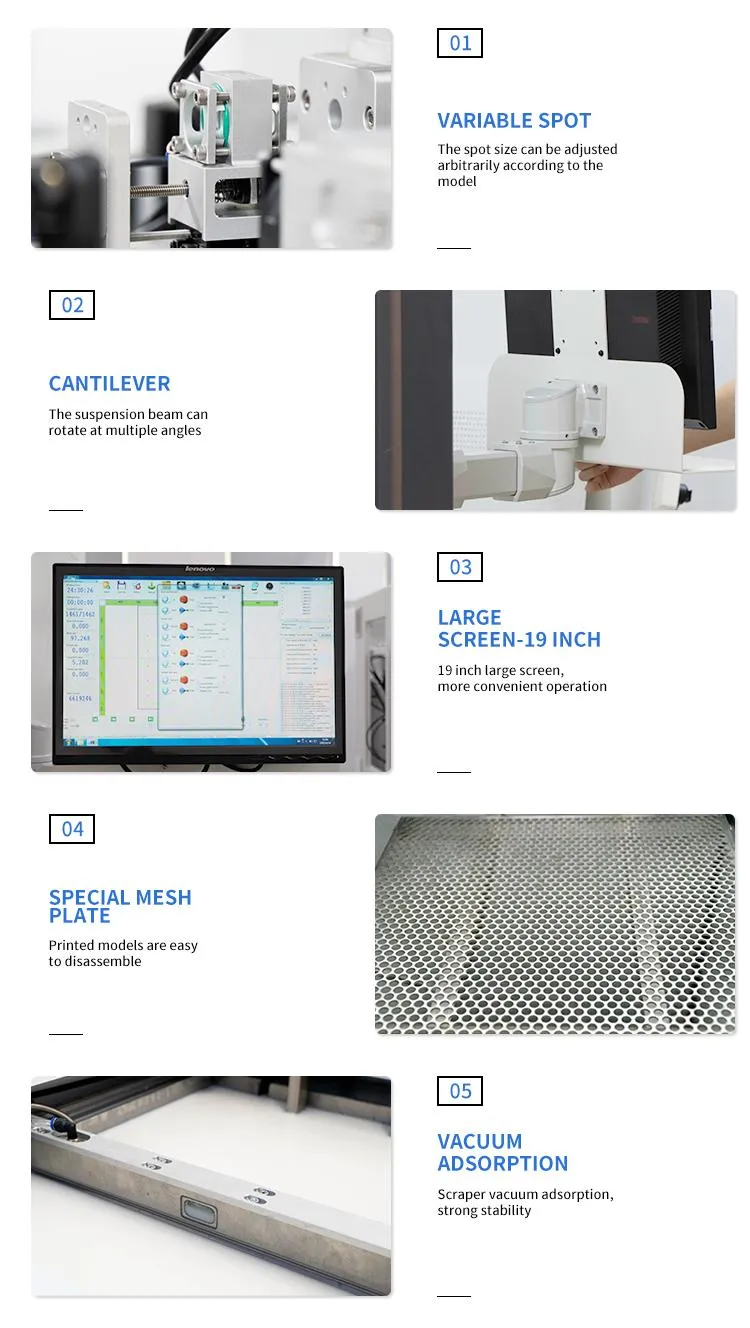

SLA 800 3D Printer Detail 3
SLA 800 3D Printer Detail 4

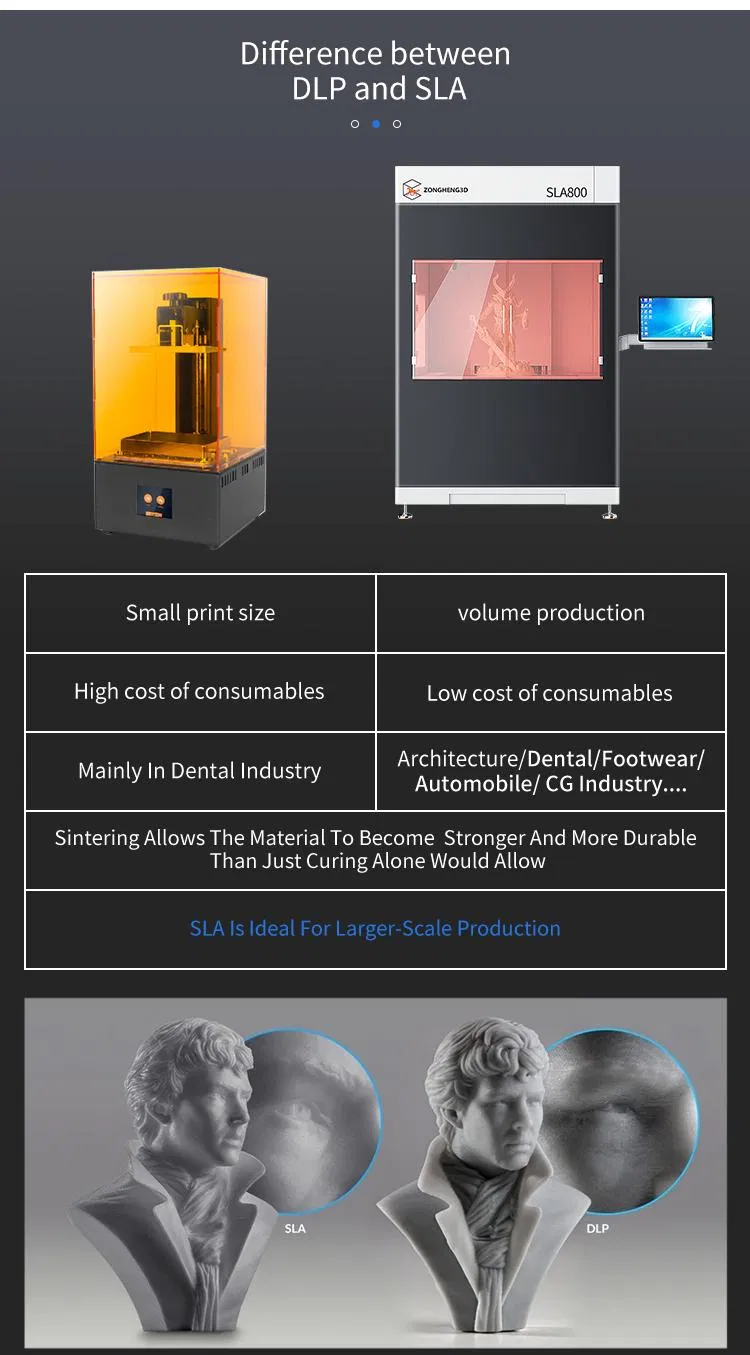

SLA 800 3D Printer Detail 5
SLA 800 3D Printer Detail 6
SLA 800 3D Printer Detail 7
SLA 800 3D Printer Detail 8
SLA 800 3D Printer Detail 9
❓ Frequently Asked Questions
1. What is the maximum build volume of the SLA800?
The standard maximum forming volume is 800x800x500mm, and it is also customizable to meet specific industrial requirements.
2. Which materials are compatible with this 3D printer?
The SLA800 is designed to work with photosensitive resin materials, ideal for high-precision industrial prototypes.
3. What file formats does the operating software support?
The system supports standard industrial formats including STL and SLC files, ensuring compatibility with most CAD design software.
4. How precise is the printing process?
The printer offers a precision range of 100-200mu, with a layer thickness that can be adjusted between 0.05mm and 0.2mm for detailed finishes.
5. What are the environmental requirements for operation?
For optimal performance, the working ambient temperature should be maintained between 20-28ºC with a relative humidity of less than 40%.
6. What type of laser technology does the SLA800 use?
It utilizes a 355NM wavelength Pulse UV solid-state laser with 3W of power for efficient and stable material curing.
