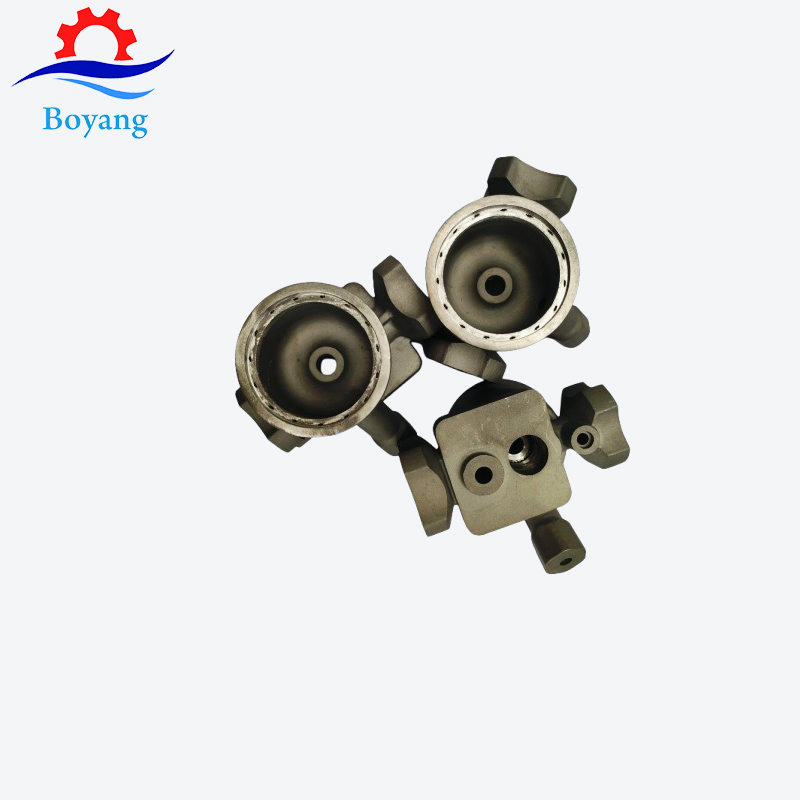

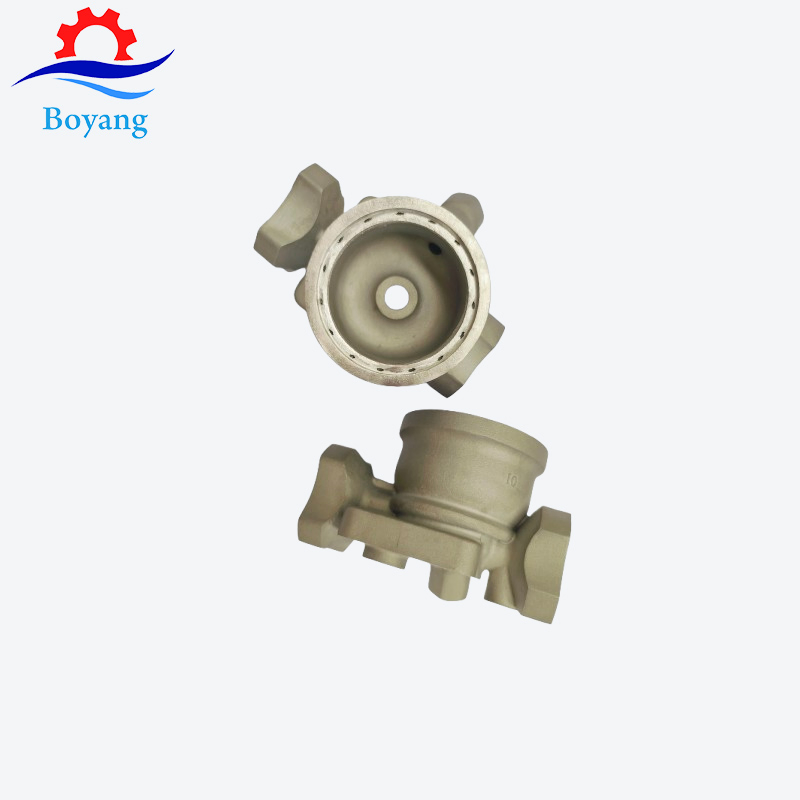

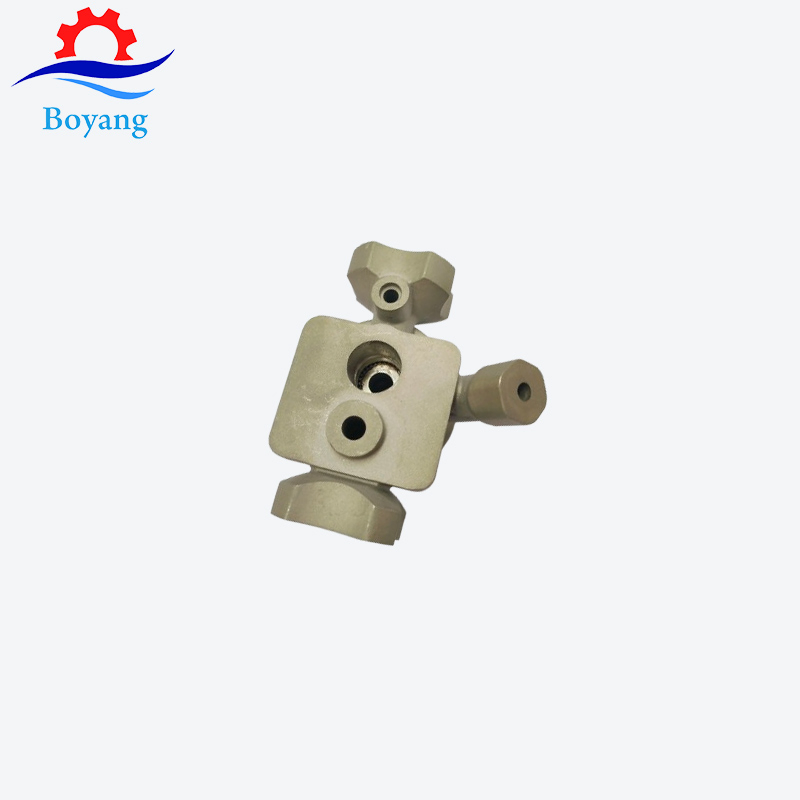

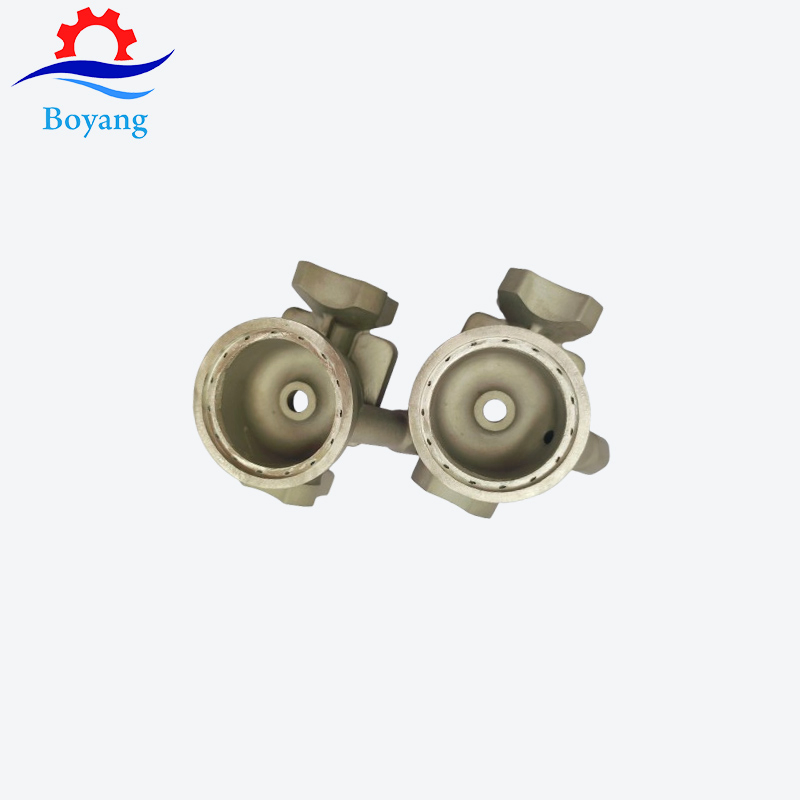

High-Temp Metal AM Solution - Precision Flow Channels Inconel 718 Turbine Engine Component

Industrial-grade metal additive manufacturing (AM) components produced via Selective Laser Melting (SLM), offering unprecedented design freedom for aerospace, energy, and high-performance applications. Our certified process delivers fully dense, functional end-use parts with superior mechanical properties.

Typical Applications

Laser Systems: Beam alignment, optical path setup
Spectroscopy: Fiber coupling, grating fixation
Microscopy: CCD camera positioning, objective lens adjustment

📊

Product Parameters

Parameter	Ti6Al4V Bracket	Inconel 718 Turbine Part
Material Standard	ASTM F1472, AMS 4928	AMS 5662/5663
Printing Technology	SLM (400W laser)	Quad-laser SLM (1000W x4)
Tolerance	±0.1mm (±0.05mm critical)	±0.08mm (±0.03mm bores)
Min Feature Size	0.3mm wall thickness	0.2mm thin walls
Density	>99.5% (as-built)	>99.7% (HIP processed)
Surface Roughness	Ra 6.3μm (as-built)	Ra 0.8μm (machined)

Advanced Structural Capabilities

Weight Reduction: Lattice/honeycomb structures (30-50% lighter)

Fluid Optimization: Integrated conformal cooling channels

Part Consolidation: 12+ components merged into a single assembly

Stress-Adapted: Topology-optimized load paths (FEA reports available)

📷

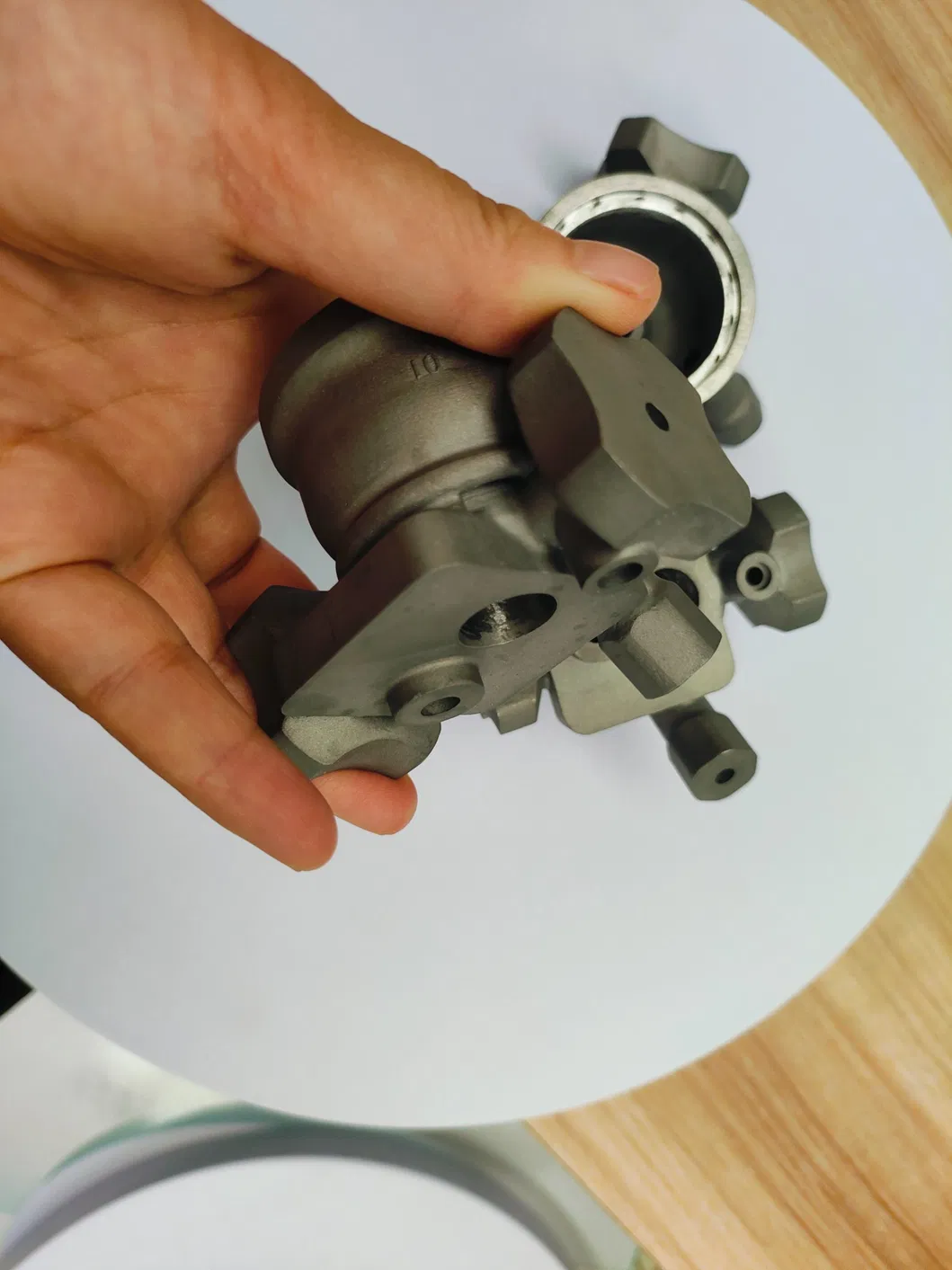

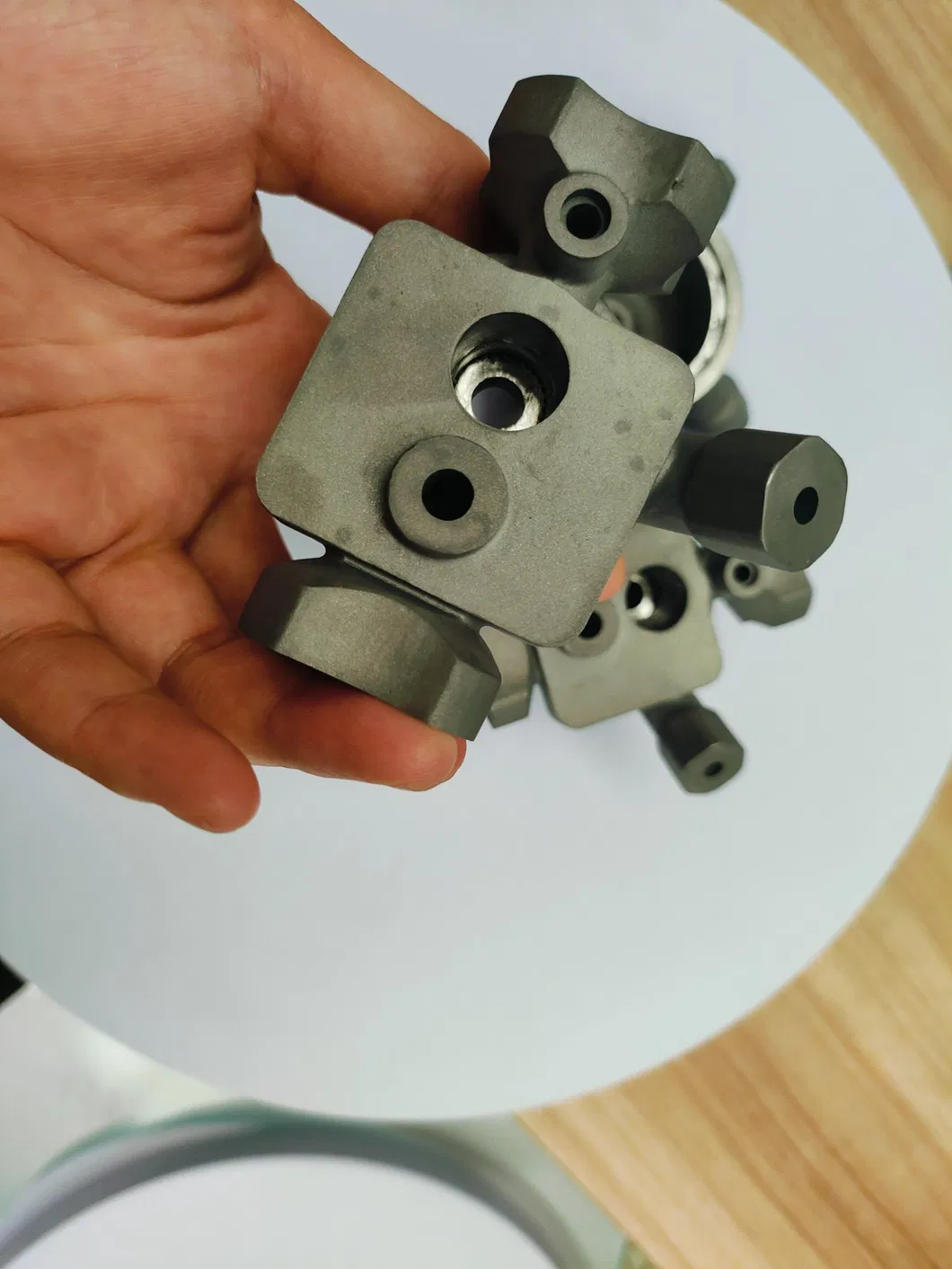

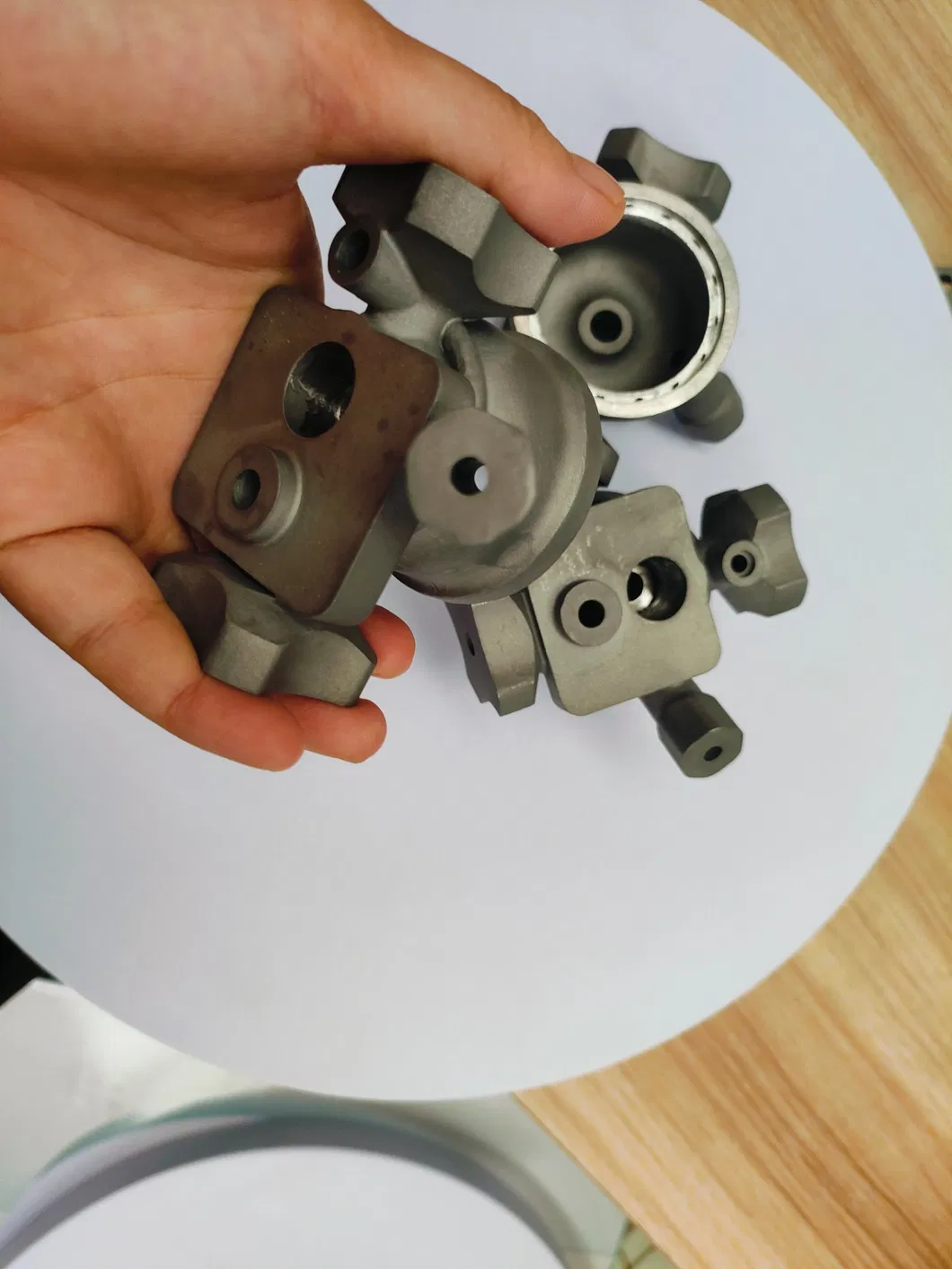

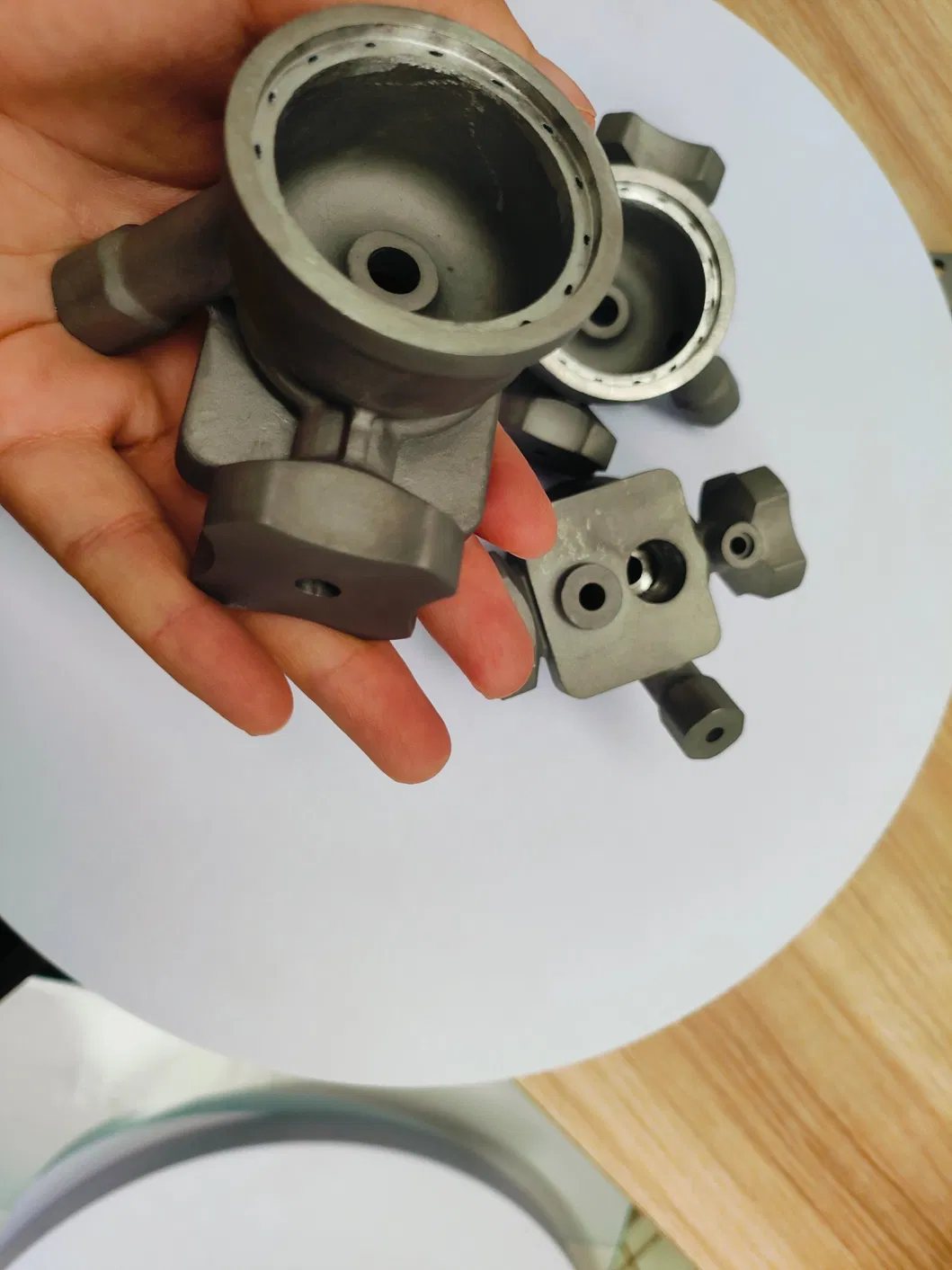

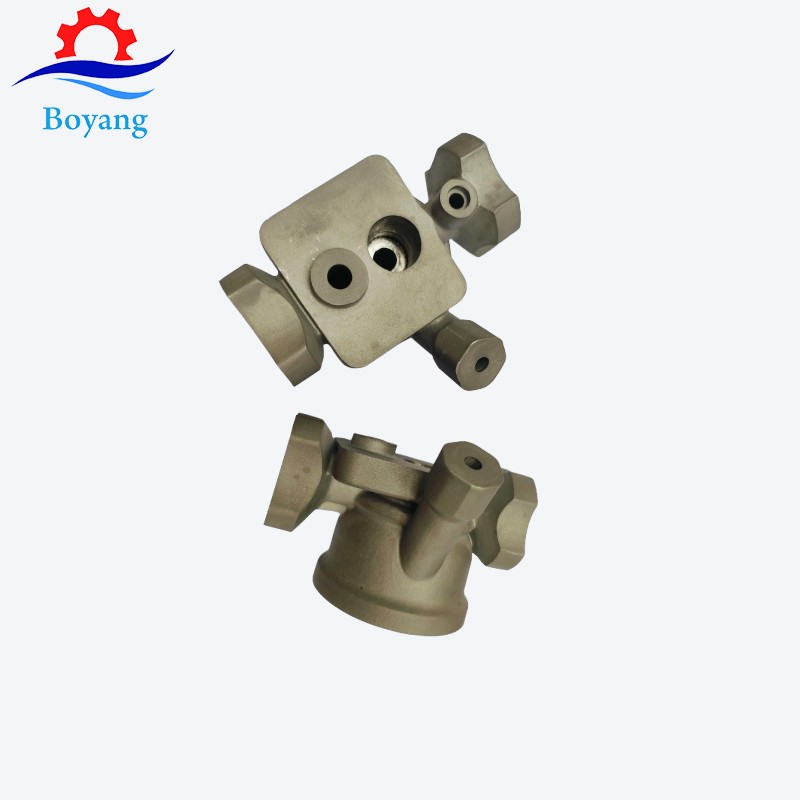

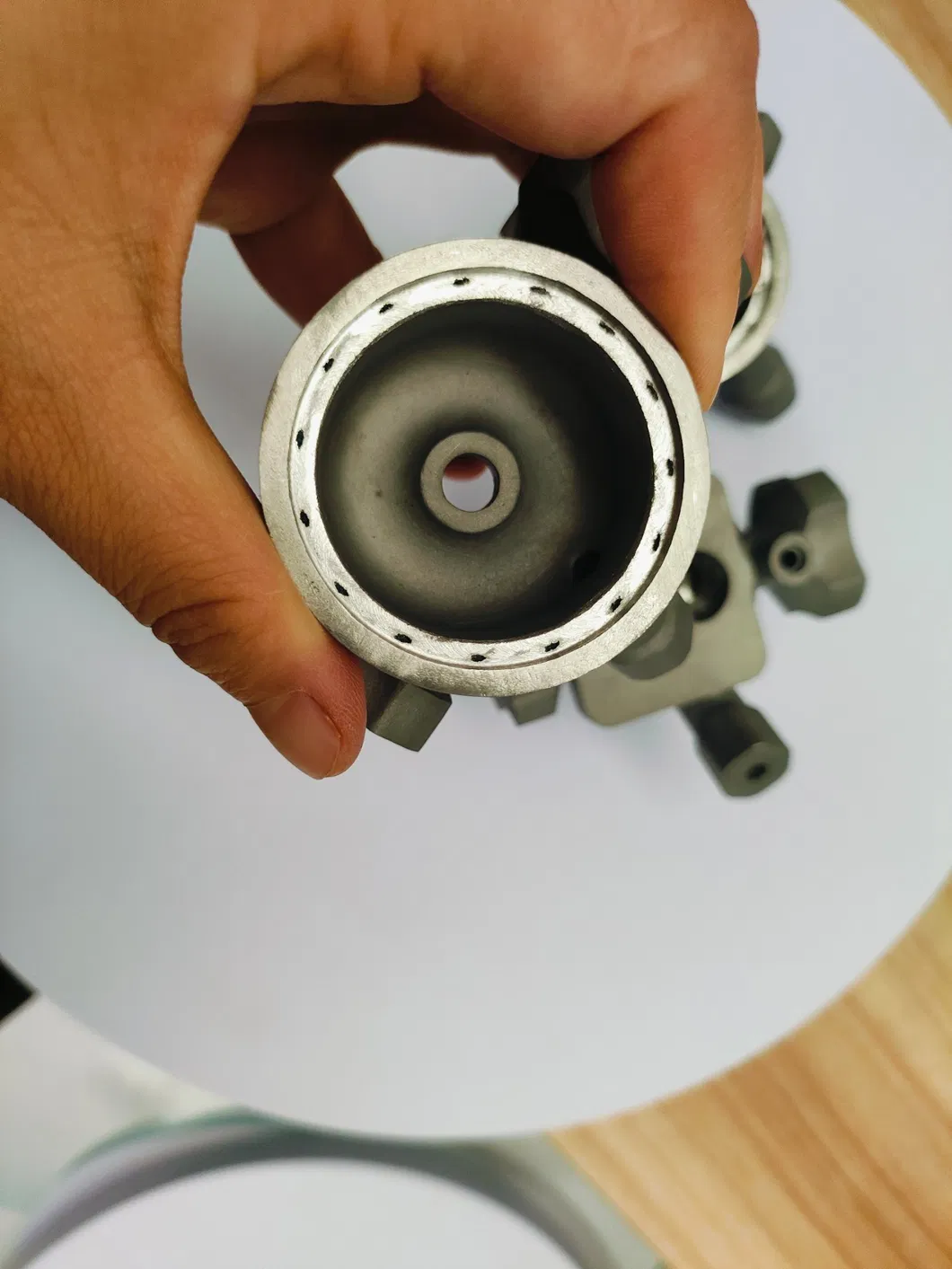

Detailed Photos

✅

Quality Assurance

Test	Method	Standard

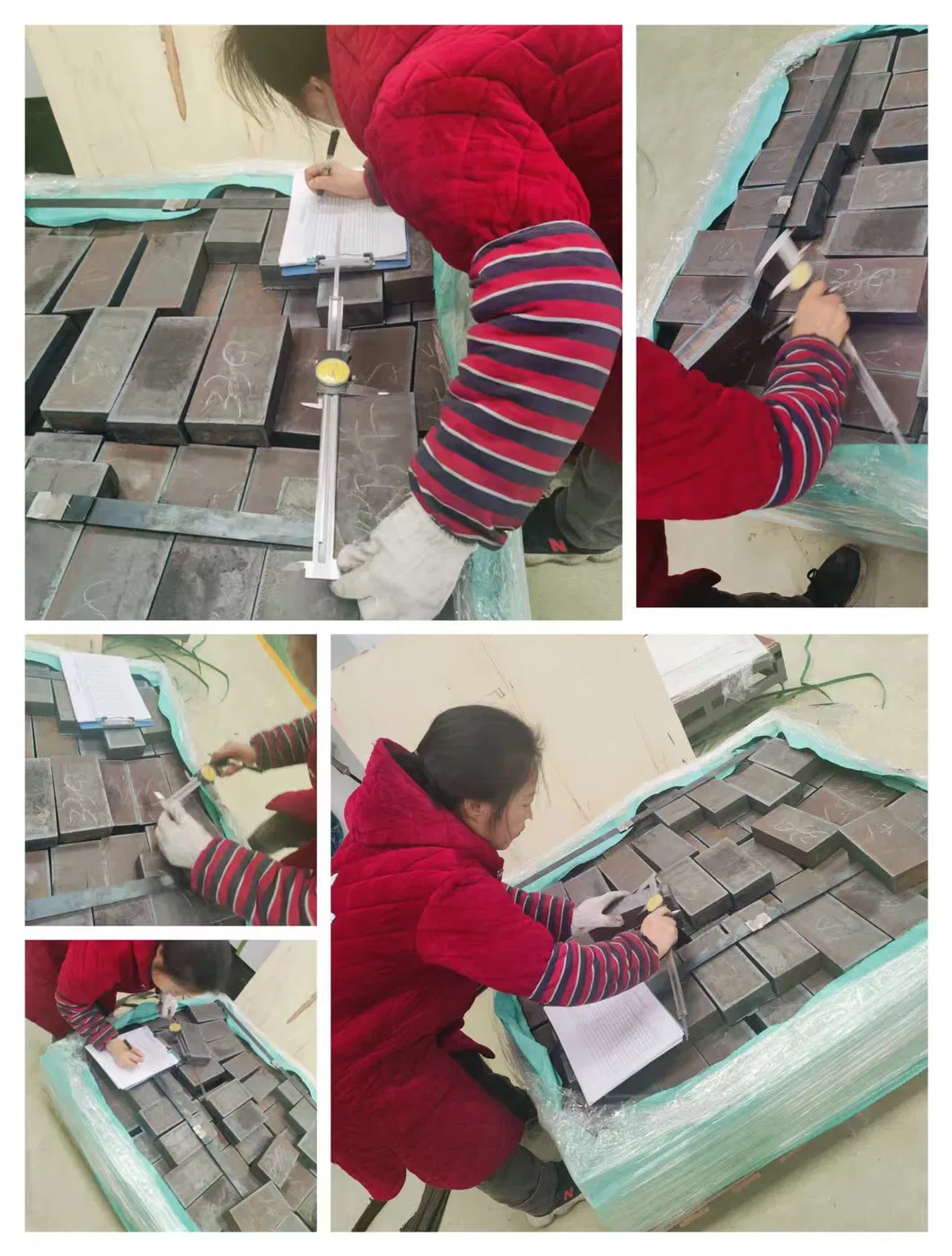

Dimensional Inspection	CMM (Zeiss CONTURA)	ISO 2768-1

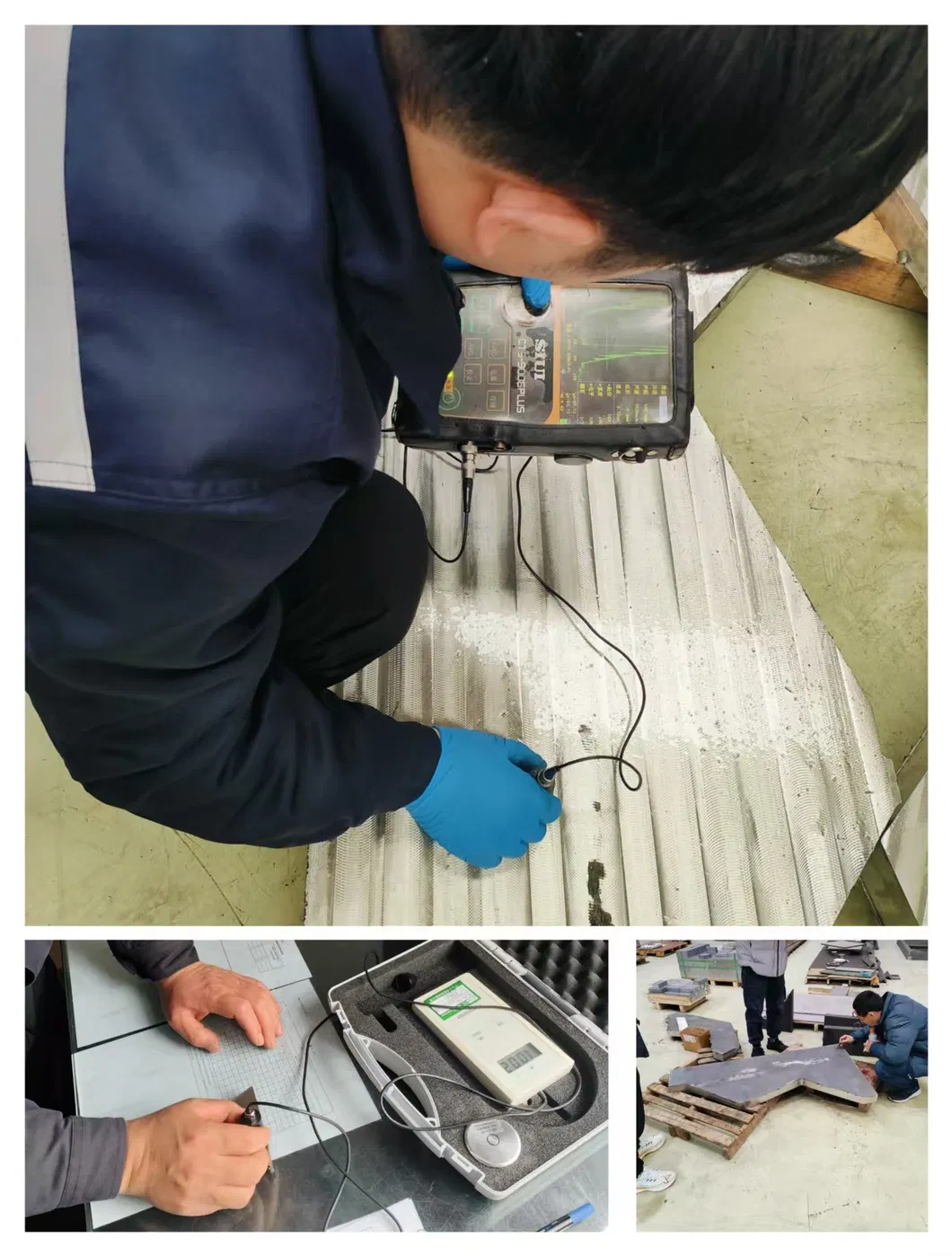

Internal Defects	Micro-CT (5μm voxel)	ASTM E1441
Mechanical Testing	Tensile/Fatigue	ASTM E8/E466
Material Composition	OES Spectroscopy	AMS Specifications

🛠️

Customization Process

1. Consultation: Submit requirements (dimensions, material, application) for a timely quotation.

2. Design & Prototyping: Engineering design using advanced software followed by prototype review.

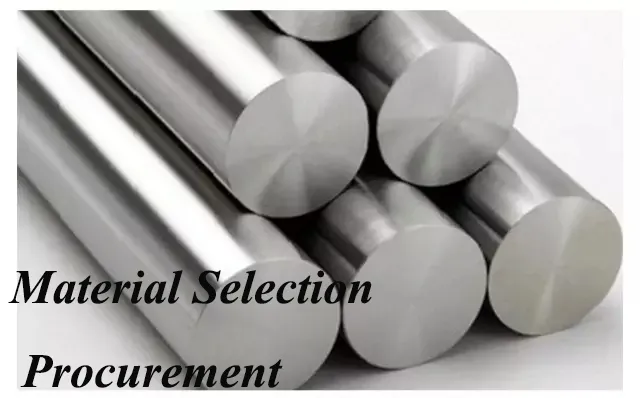

3. Material Procurement: Selection based on part specifications and application needs.

4. Manufacturing: CNC production with continuous quality monitoring.

5. Finishing: Deburring, polishing, or coating as required.

🌍

Industry Applications

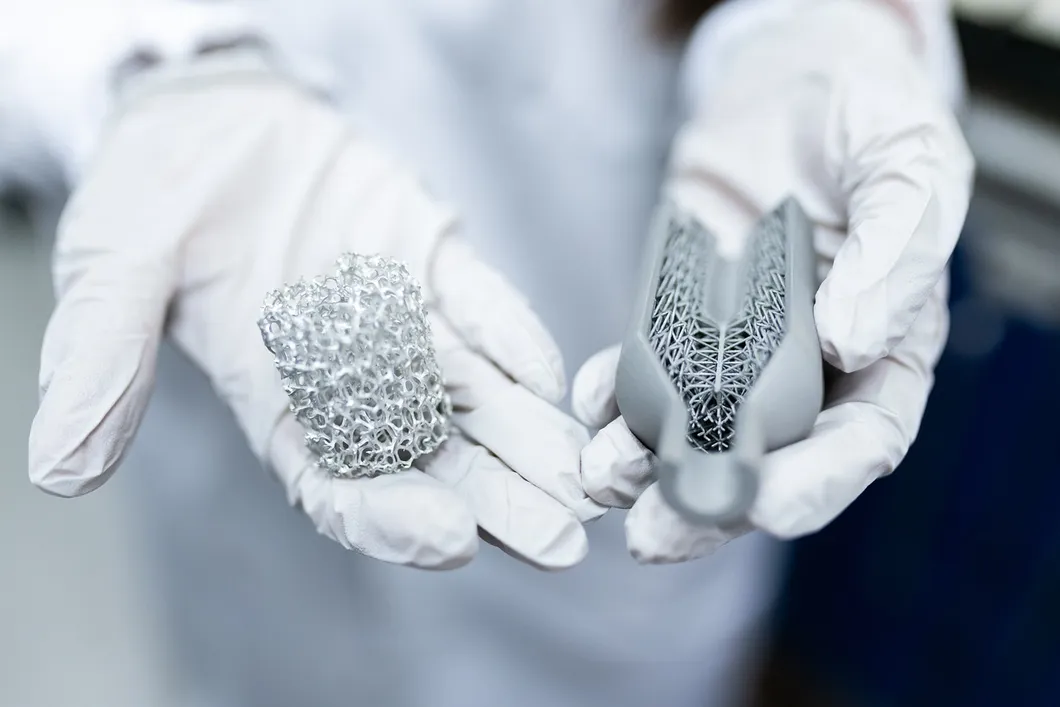

Automotive: Crucial for engines, transmissions, and suspension components.

Aerospace: High-reliability parts for aircraft engines and control systems.

Medical: MRI machines, CT scanners, and surgical robots meeting stringent standards.

❓
