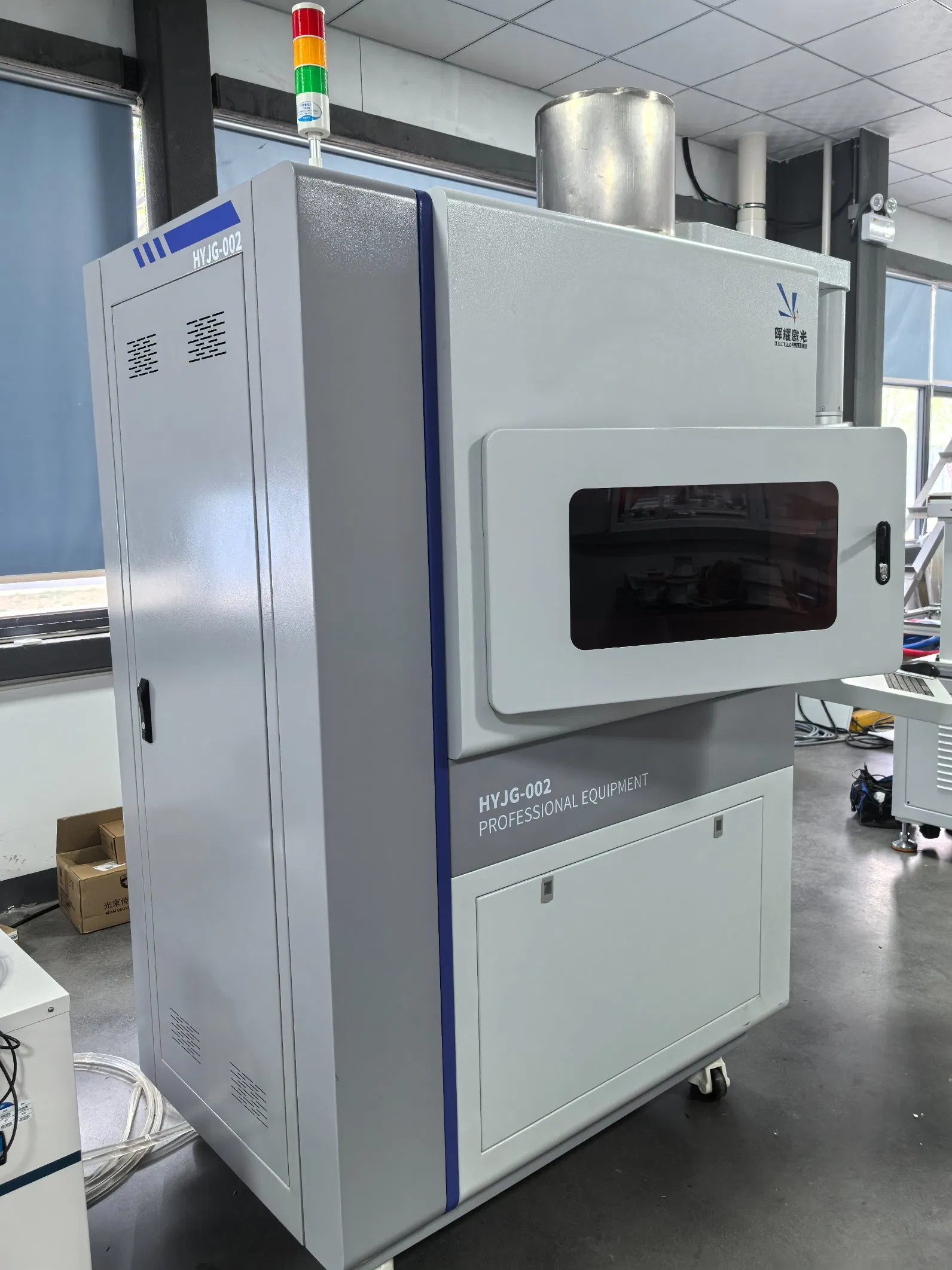

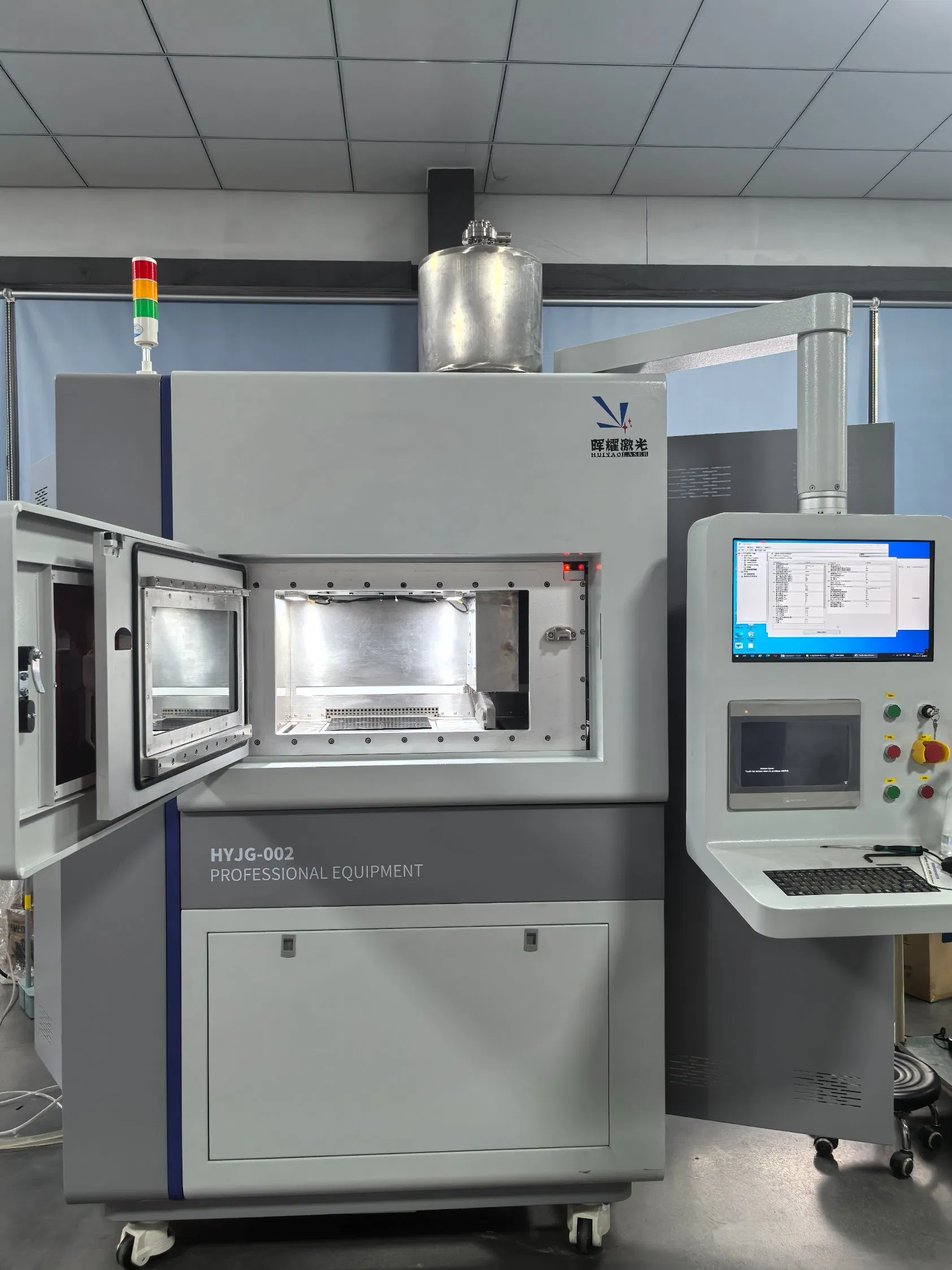

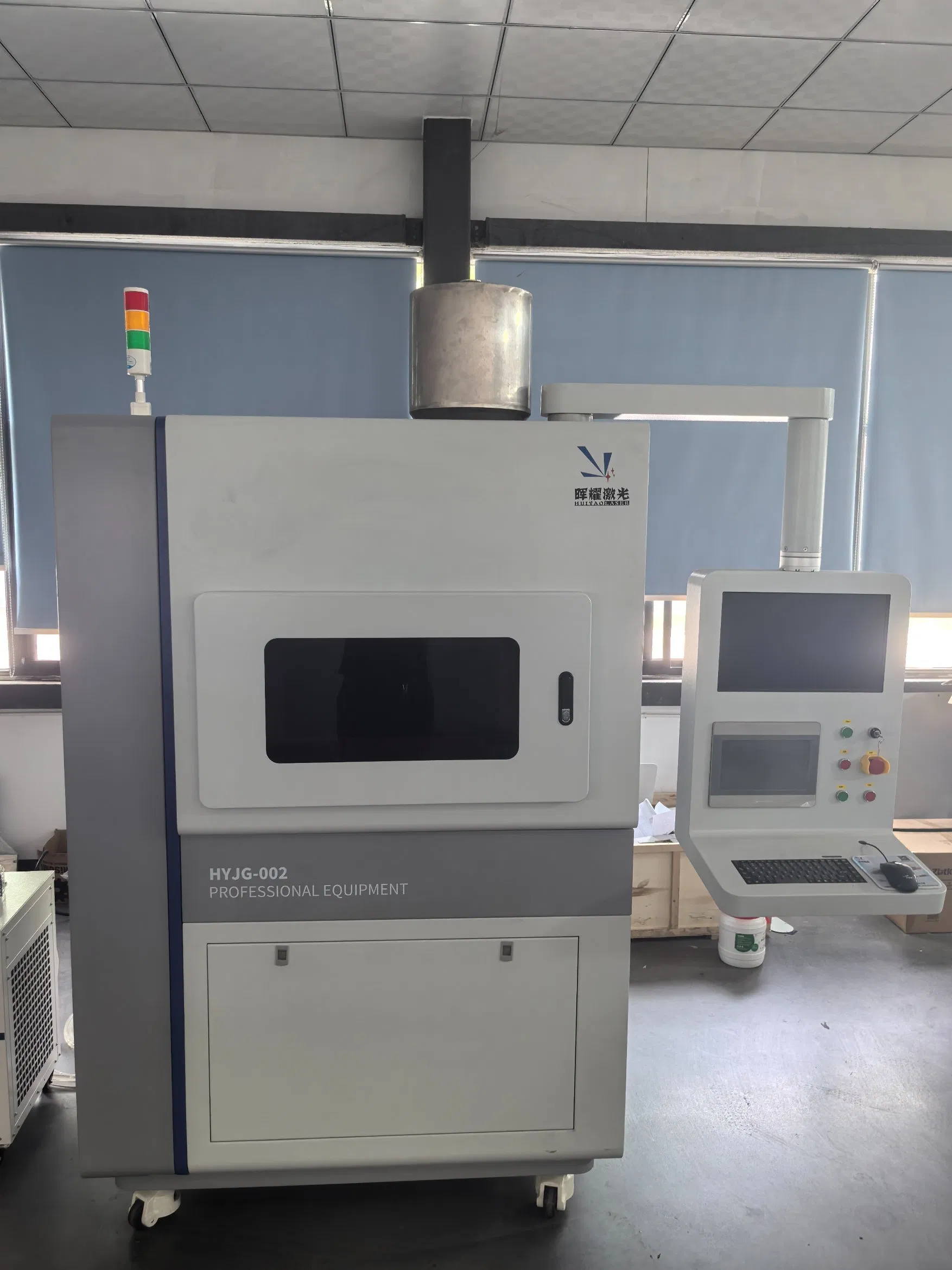

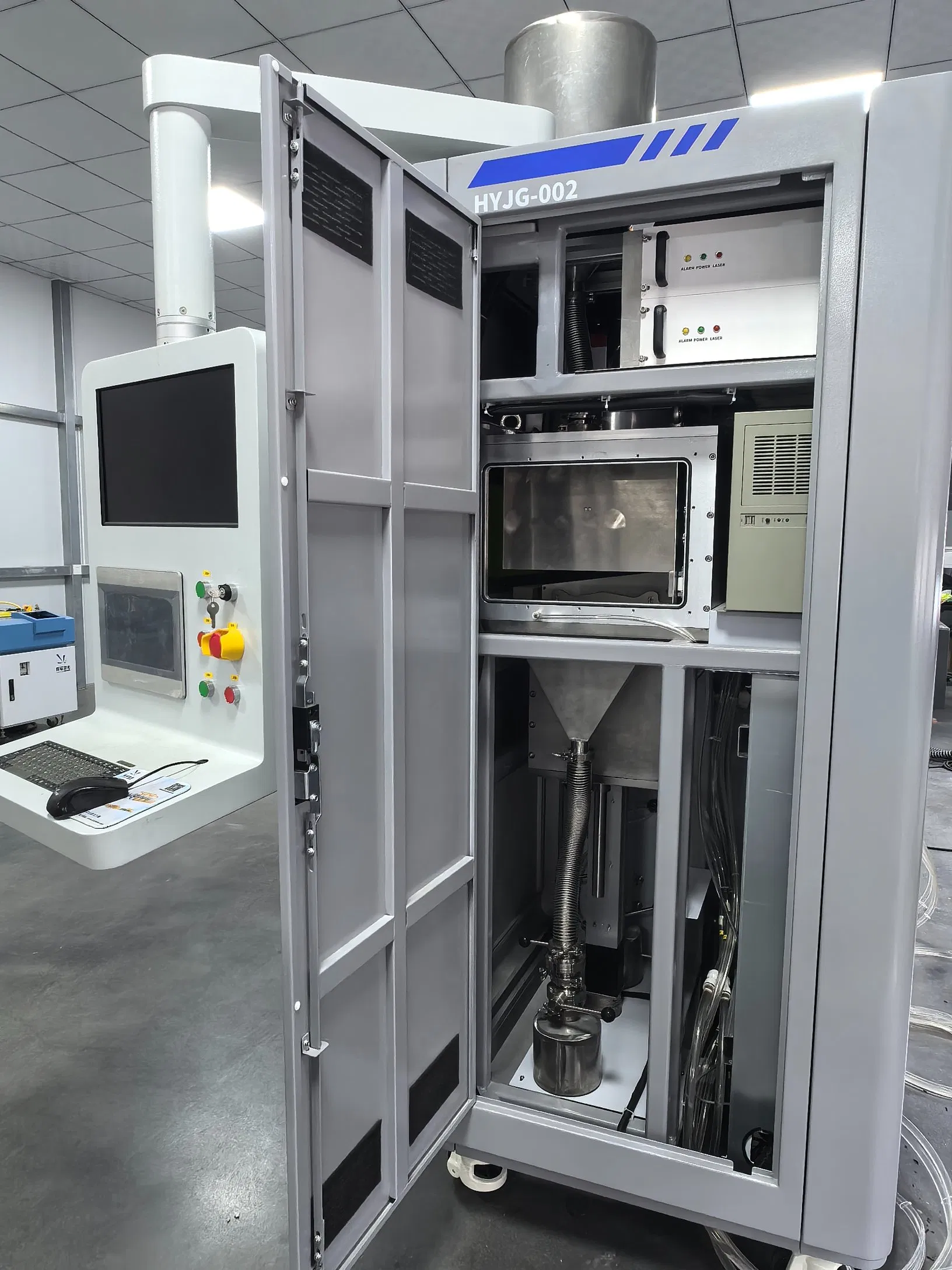

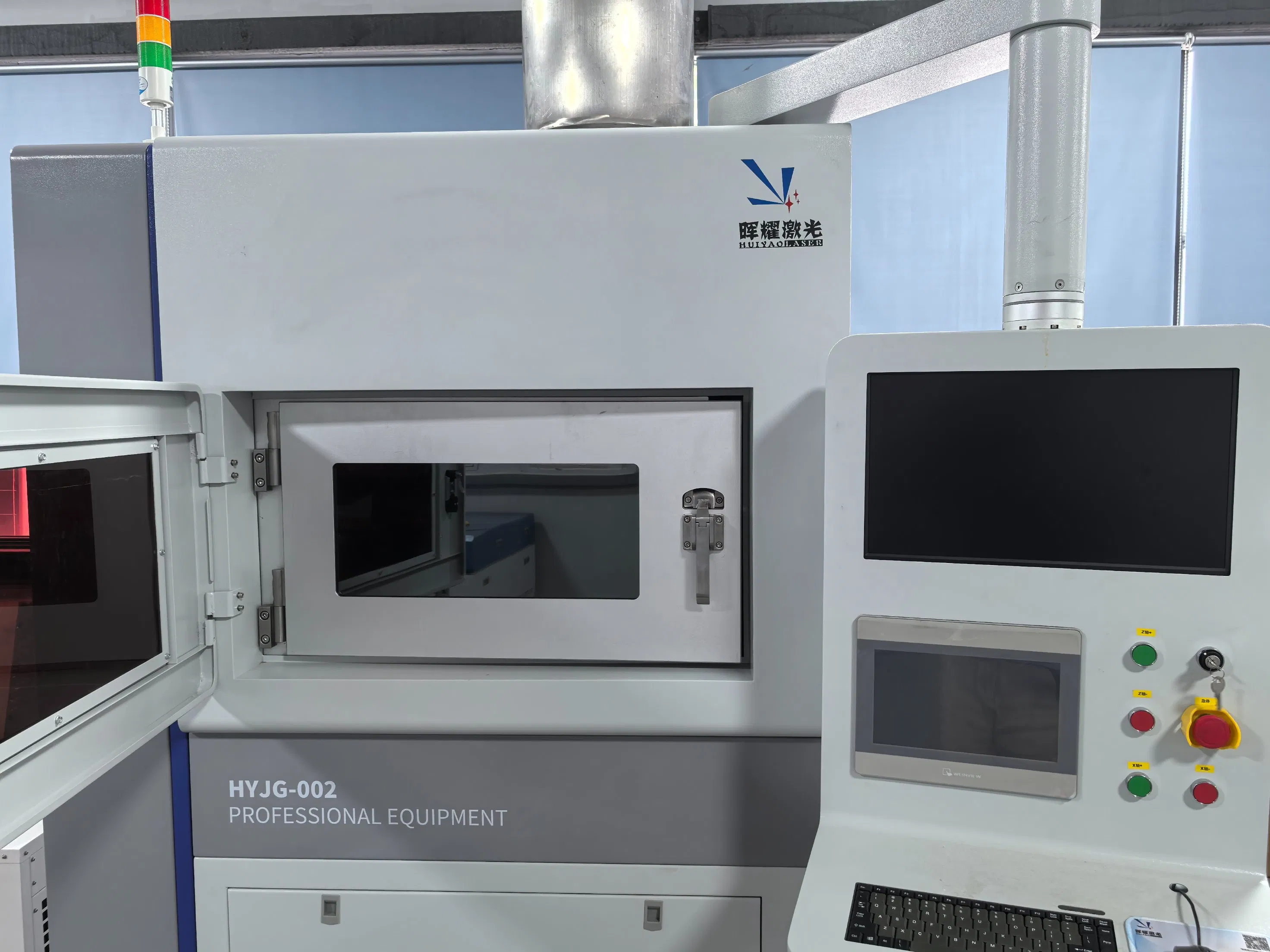

The SLM Dual-Laser Metal 3D Printer is a high-efficiency, intelligent, and customized industrial-grade additive manufacturing system specifically designed for aerospace, medical implants, and precision tooling. By integrating dual-laser dynamic coupling technology (500W primary laser + 200W secondary laser), closed-loop powder management (powder utilization rate ≥95.7%), and intelligent quality monitoring (melt pool spectral analysis ±10ºC), the system reliably produces titanium alloy orthopedic implants with 50-200μm porous structures, nickel-based superalloy turbine blades featuring 0.3mm internal cooling channels, and conformal cooling injection molds, complying with ISO/ASTM 52900 additive manufacturing standards and NADCAP aerospace certification requirements.
| Parameter | Specification |
|---|---|
| Model | SLM Dual-Laser |
| Laser | IPG 500W / Domestic Laser |
| Build Size | Diameter 252mm |

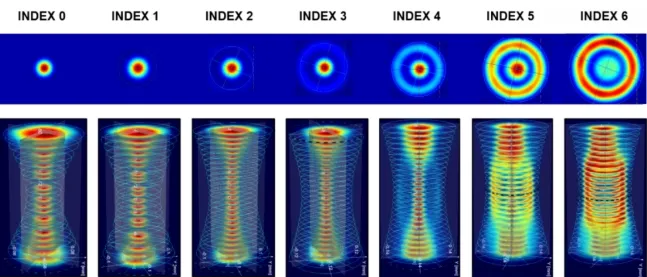

| Spot Size | ≈40μm |
| Scanning System | ScanLab |
| Layer Thickness | 0.02-0.05mm |
| Part Density | 99%-100% |
| Accuracy | ±0.1mm |
| Surface Roughness | Ra 6-15μm |
| Total Power | 8KW/9KW |
| Compatible Materials | Stainless Steel, Titanium Alloys, Aluminum Alloys, High-Entropy Alloys |

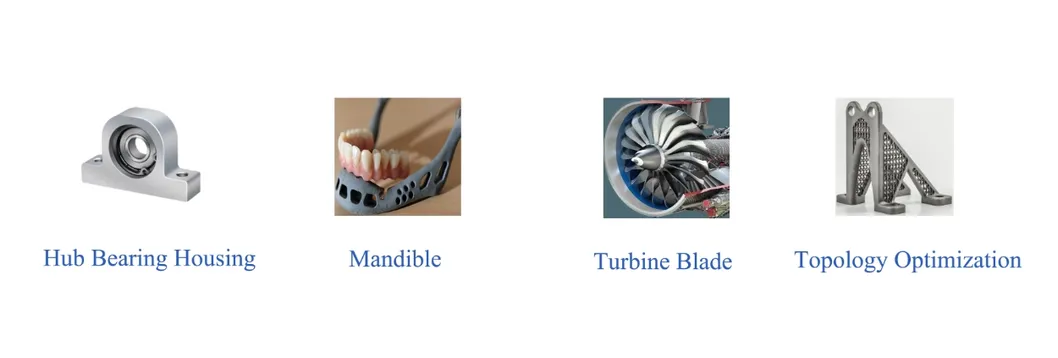

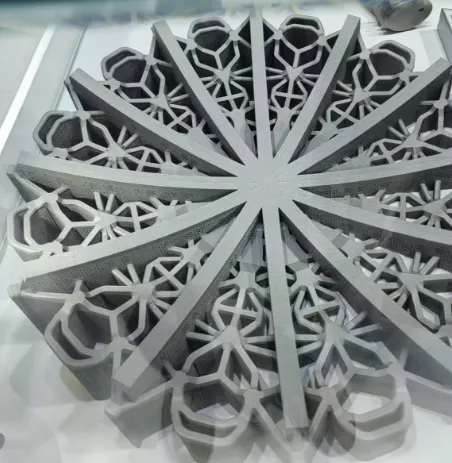

1. Complex Precision Manufacturing: Porous titanium alloy medical implants, Aerospace turbine blades, Industrial conformal cooling molds.
2. Rapid Prototyping: Acoustic metamaterial lattice structures, Microchannel validation models.
3. Low-Volume Customization: Topology-optimized lightweight suspension brackets, Integrated vacuum chamber forming.
Process Development: Material parameter package customization for 30+ metal powders.
Technology Enablement: Equipment operation certification training (ISO/ASTM 52920 compliant).
Full-Cycle Support: 24/7 remote diagnostics and 48-hour spare parts supply.
Precision Protection, Global Assurance

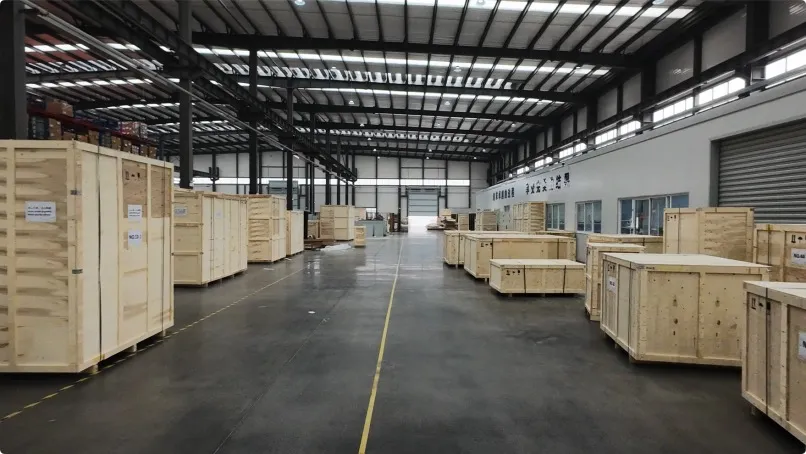

Every system is meticulously packaged in heavy-duty wooden crates with anti-vibration reinforcement. Our logistics network ensures damage-free delivery to 50+ countries.

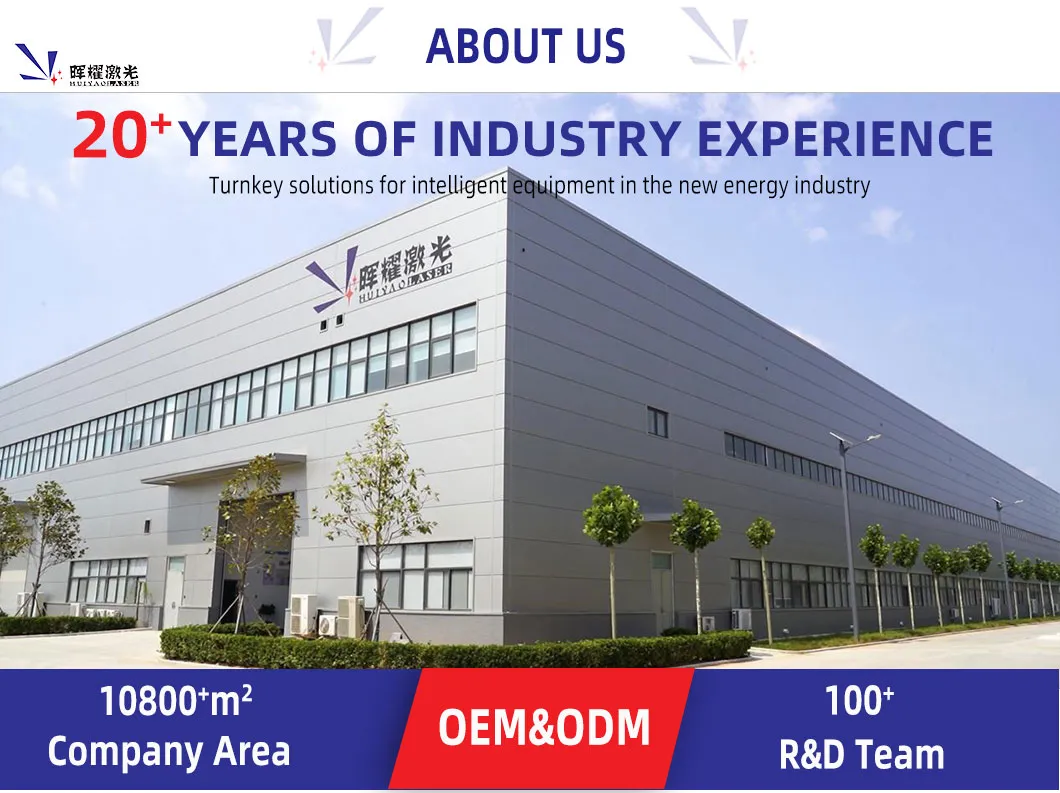

An industry-leading manufacturer of new energy intelligent equipment and SLM dual-laser 3D printing systems, dedicated to providing innovative turnkey solutions for metal additive manufacturing. Since its establishment in 2019, the manufacturer has continuously advanced laser processing and automation technologies, delivering high-performance dual-laser SLM 3D printers and smart manufacturing systems to global industries.
