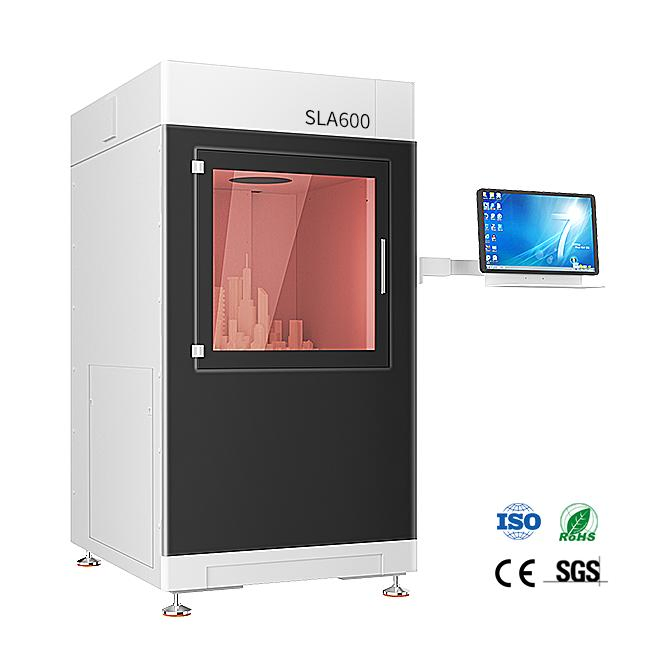

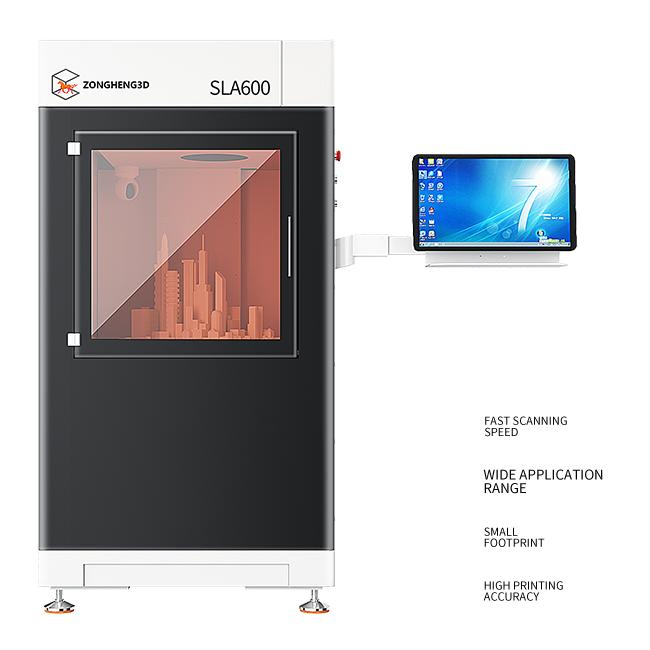

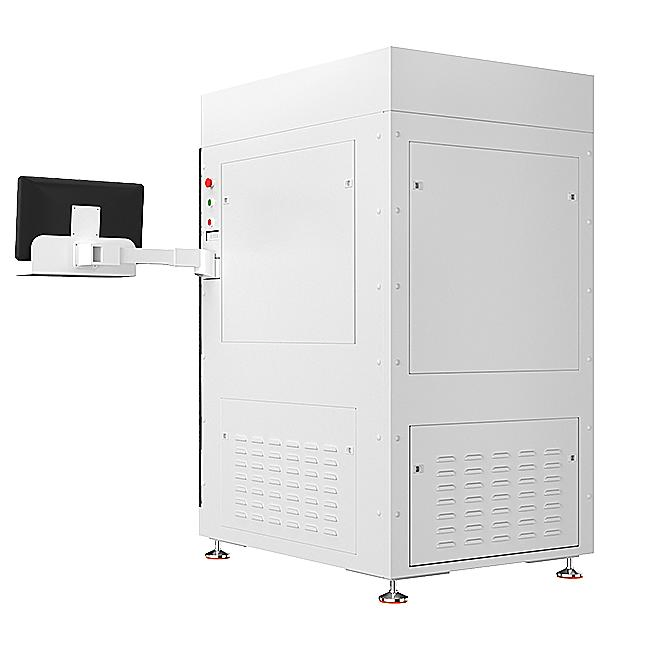

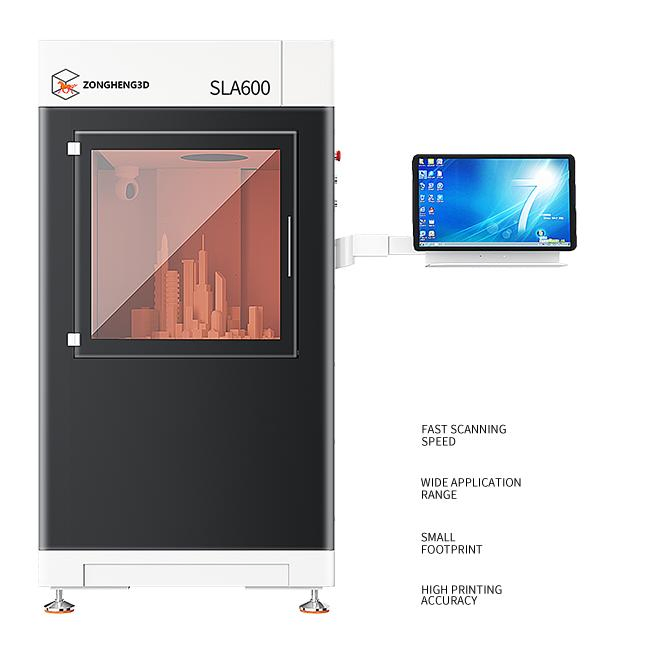

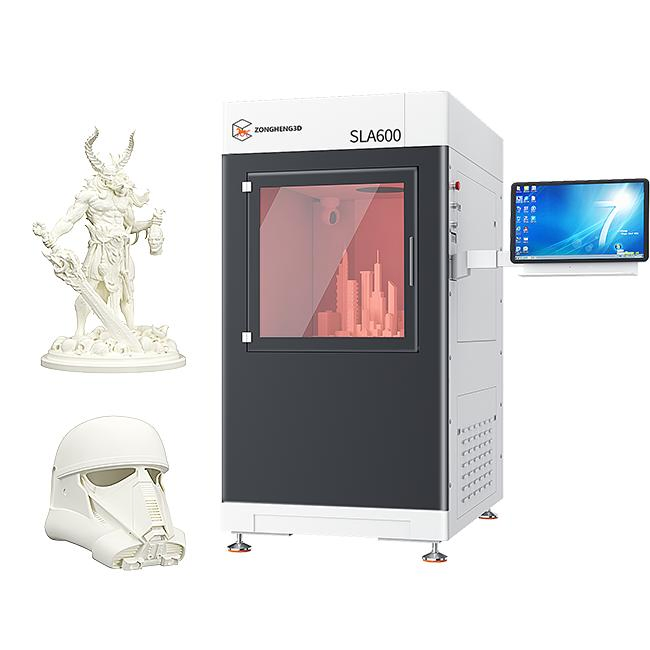

High-End SLA 600 3D Printer with Large Format and Ultra-Precision
High-End SLA 600 3D Printer with Large Format and Ultra-Precision
High-End SLA 600 3D Printer with Large Format and Ultra-Precision
High-End SLA 600 3D Printer with Large Format and Ultra-Precision
High-End SLA 600 3D Printer with Large Format and Ultra-Precision
1 / 5
High-End SLA 600 3D Printer with Large Format and Ultra-Precision
High-End SLA 600 3D Printer with Large Format and Ultra-Precision
High-End SLA 600 3D Printer with Large Format and Ultra-Precision
High-End SLA 600 3D Printer with Large Format and Ultra-Precision
High-End SLA 600 3D Printer with Large Format and Ultra-Precision

High-End SLA 600 3D Printer with Large Format and Ultra-Precision

Customization: Available
Warranty: 1 Year
File Format: SLC, STL
Send Inquiry

Product Description

Basic Specifications
Model NO.
SLA600
Nozzle Number
1
Precision
100-200mu
Thickness
0.01-0.15mm
Printer Material
Resin
Forming Technology
SLA
Operating System
Windows 7
Specification
0.99M*1.30M*1.85M
Origin
China
Production Capacity
20 Sets/Month
Technical Parameters
Product ModelZH-SLA 600
Laser typePulse, UV, all sold state laser
Wavelength355NM
Laser power3W
Coating methodAutomatic vacuum adsorption coating
Print layer thickness0.05-0.2MM
Import file formatSLC, STL
Material volume180L, about 225kg
Spot diameter0.1-0.6MM
Operating systemWin7 (32-bit)
Operating softwareZH6.0
Equipment weightAbout 860kg (exclude materials)
Network typeEthernet
Maximum model part weight70KG
Reference Production weight50-180G/H
Power supply parameters220V/50HZ
Maximum forming volume600x600x400mm (customizable)
Scanning speed6000MM/S
Working temperature20-28ºC
Product Display

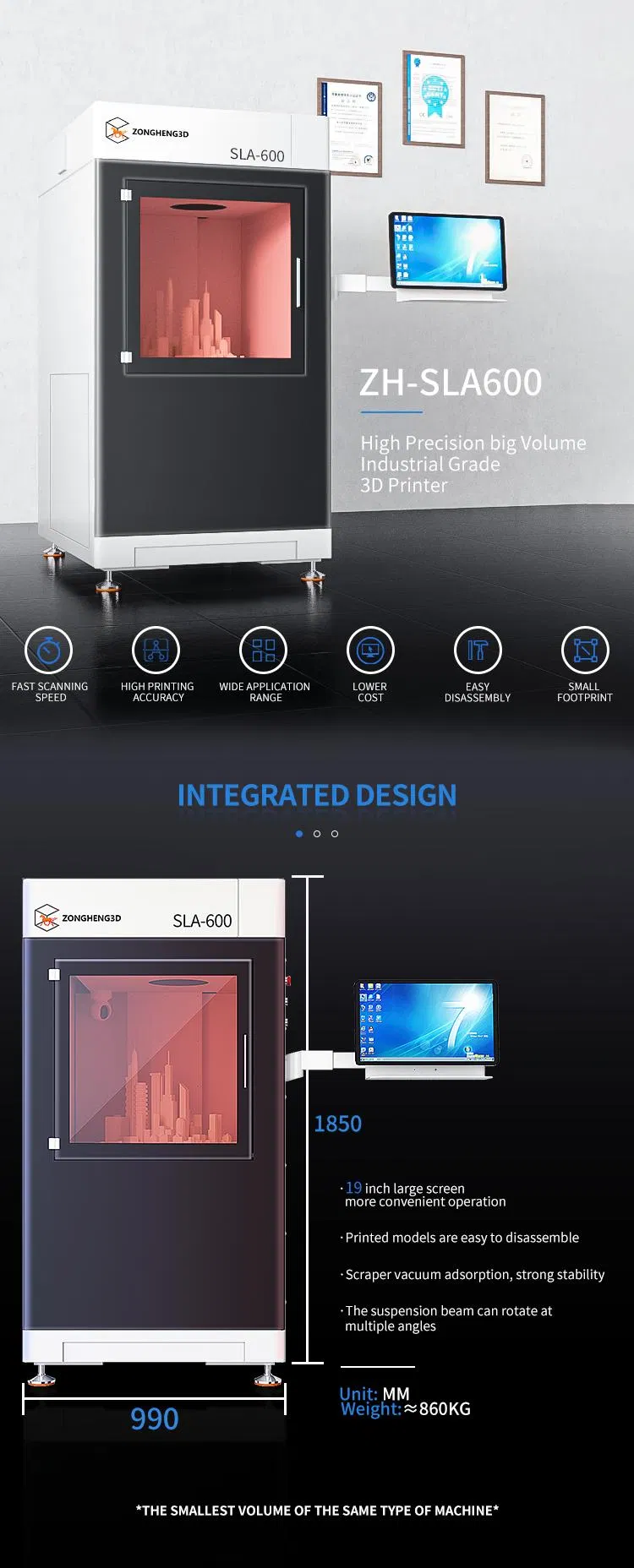

SLA 600 3D Printer View 1
SLA 600 3D Printer View 2

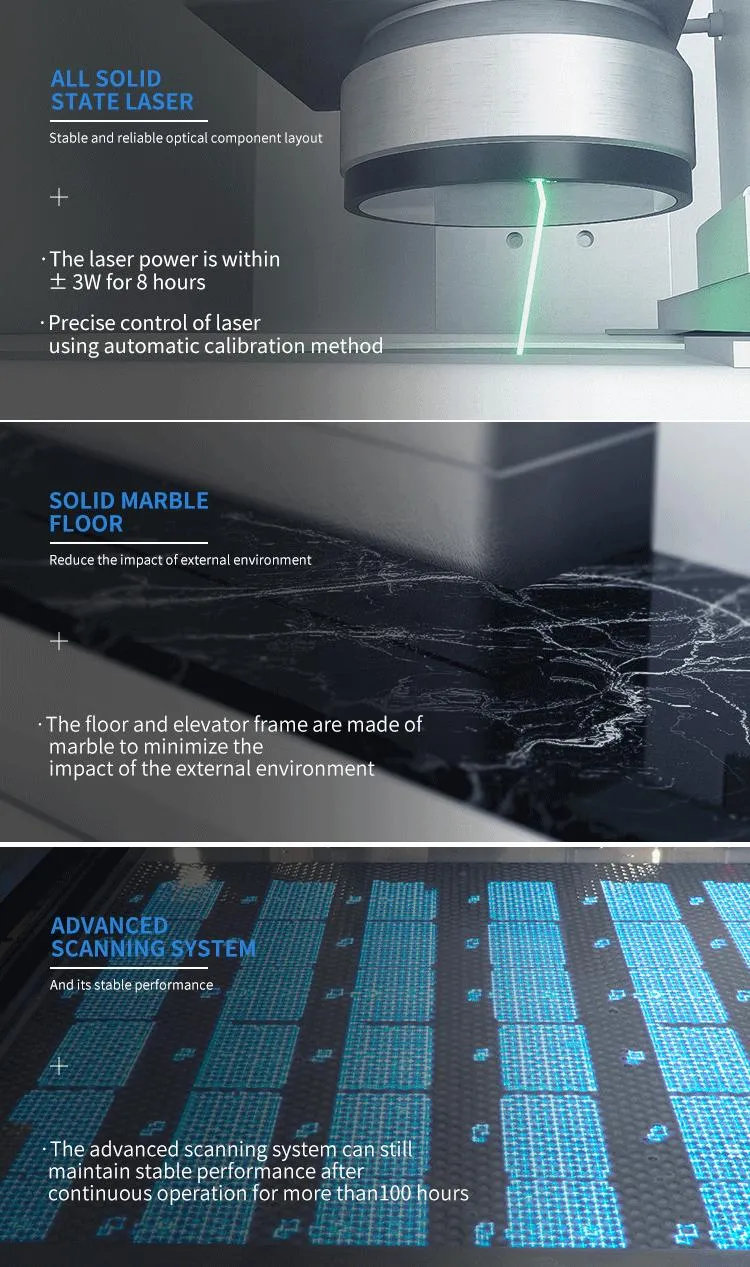

SLA 600 3D Printer View 3

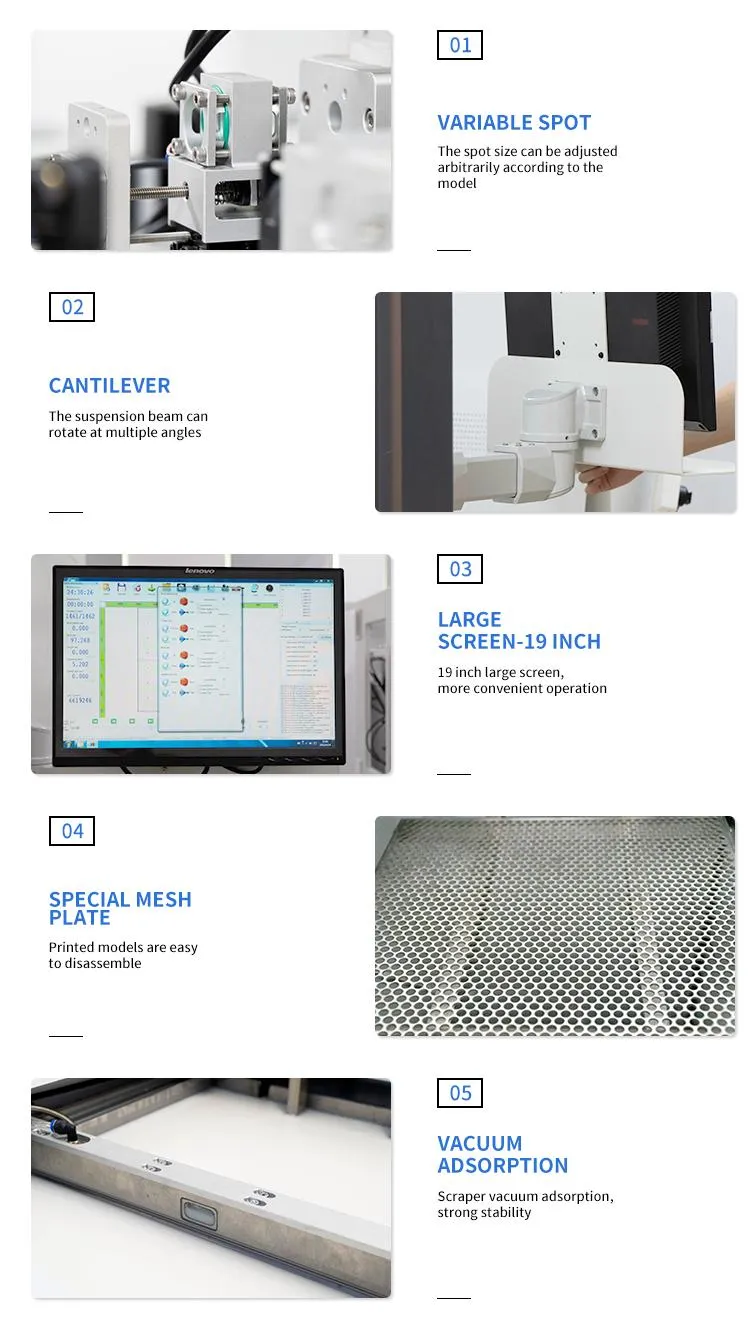

SLA 600 3D Printer View 4
SLA 600 3D Printer View 5
SLA 600 3D Printer View 6
SLA 600 3D Printer View 7
SLA 600 3D Printer View 8
SLA 600 3D Printer View 9
SLA 600 3D Printer View 10
SLA 600 3D Printer View 11
Frequently Asked Questions
What is the maximum forming volume of the SLA600?
The standard maximum forming volume is 600x600x400mm, and it is also customizable to meet specific requirements.
Which file formats are compatible with this 3D printer?
The system supports standard industrial formats including SLC and STL.
What kind of printing precision can I expect?
The SLA600 offers a high precision of 100-200mu with a print layer thickness ranging from 0.01mm to 0.15mm.
What material does the printer use?
This printer is designed to use Resin as the primary printing material, with a material tank volume of approximately 180L (225kg).
What are the power and environmental requirements?
It requires a 220V/50HZ power supply. The recommended working ambient temperature is between 20-28ºC with relative humidity below 40%.
How is the equipment packaged for transport?
The machine is securely packed in a wooden case to ensure safety during transport. The total equipment weight is approximately 860kg.
